Hayward Pro Series Top Mount Sand Filter 22 inch Tank Includes 1.5 inch Top Mount Vari-Flo Valve | W3S220T Parts

Back to Product

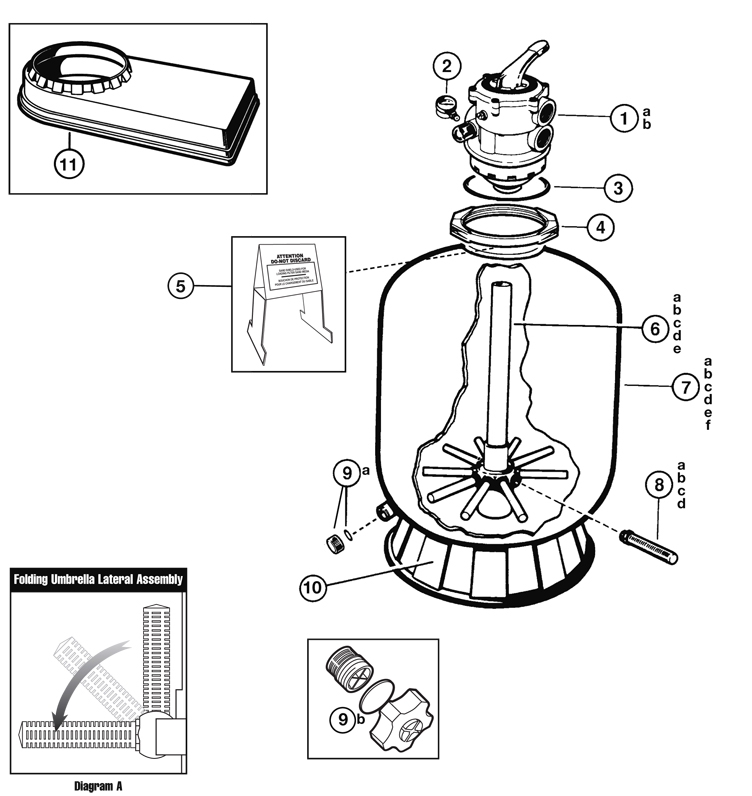

Hayward Pro Series Top Mount Sand Filter 22 inch Tank Includes 1.5 inch Top Mount Vari-Flo Valve | W3S220T Parts Schematic

1a

Hayward 1.5" Vari-Flo XL Valve Top Mount Sand Filter Multi-Port Control Valve | SP0714T

1b

Hayward Backwash Valve Kit with Clamp & O-Ring Sand Pro Series | SP071620T

2

HAYWARD ECX270861 PRESSURE GAUGE (BOTTOM MOUNT)

3

Hayward O-Ring Valve/Tank | GMX600F

4

HAYWARD GMX600NM FLANGE CLAMP F/DOME PRO SERIES

5

HAYWARD SX202S SAND SHIELD CORRUGATED DESIGN

6

HAYWARD SX220DA LATERAL ASSY W/CENTER PIPE

7

SX220AA1 TANK W/SKIRT/DRAIN/LATERALS

8

HAYWARD SX240D LATERAL S240/S220S/S244S

9a

HAYWARD SX180HG DRAIN CAP KIT PRO SERIES PLUS

10

SX200J FILTER SUPPORT STAND

11

SX180K SYSTEM BASE S180T/S166T

n/s

Hayward Sand Filter Bottom Drain Screen | Fits S240,S200,S160T Filters | SX200H
