Home Pentair Sta-Rite D.E. Filter SD Series System:3 (Backwash Valve Required - Not Included) 53 sq. ft. | S8D110 Parts

Pentair Sta-Rite D.E. Filter SD Series System:3 (Backwash Valve Required - Not Included) 53 sq. ft. | S8D110 Parts

Back to Product

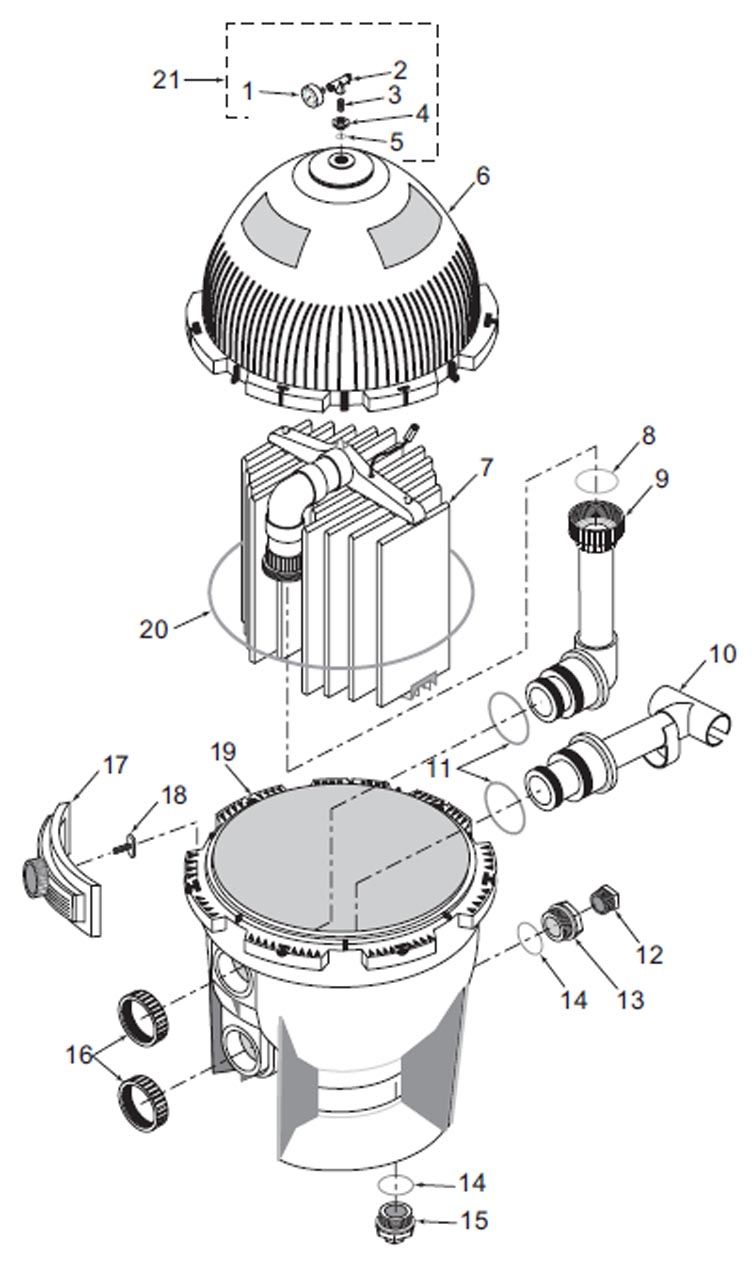

Pentair Sta-Rite D.E. Filter SD Series System:3 (Backwash Valve Required - Not Included) 53 sq. ft. | S8D110 Parts Schematic

1

Pentair Sta-Rite 2" OEM Pressure Gauge 06-60 PSI Back Mount 1/4" NPT | 33600-0023T

2

PENTAIR WC8-72D SCREEN FILTER PRC50/PRC75

4

PENTAIR 35202-0959 CLOSE NIPPLE 1/4" SYSTEM 3

5

Pentair Adapter Bushing System 3 | 24900-0504

6

PENTAIR 24851-9001 TANK UPPER HALF 25" SYSTEM 3

7

PENTAIR 23900-1221S FILTER ELEMENT ASSEMBLY S8D110

8

Pentair O-Ring Sta-Rite Standpipe, IntelliPro Union, Pacfab and Sta-Rite Backwash Valves 39006600 | U9-362

9

PENTAIR 23911-0102 OUTLET ASSEMBLY SYSTEM 3 DE

10

PENTAIR 23911-0101 INLET ASSEMBLY SYSTEM 3 DE

11

PENTAIR 35505-1425 O-RING F/BULKHEAD ASSEMBLY

11

O-283-9 35505-1425 154005 O-RING MINN. 8343-60 DURO

13

Pentair Adapter Fitting Prion 10/03 | 24900-0509

14

PENTAIR 35505-1424 O-RING ADAPTER TO TANK PLM/PLD

15

PENTAIR 24900-0503 DRAIN PLUG SYSTEM 3

16

PENTAIR 24752-0050 BULKHEAD RETAINER NUT SYSTEM 3

17

Pentair Sta-Rite System 3 Clamp Assembly | 24850-0200

18

Pentair Sta-Rite System 3 T-Bolt Assembly | 24850-0010

19

PENTAIR 24851-0103S TANK LOWER HALF SYSTEM 3

20

Sta-Rite Tank O-Ring for 25" System 3 Tank | 24850-0009

20

O-486 O-RING FOR TANK 25" SYSTEM 3

21

Pentair Valve & Gauge Assy System 3 24850-0105
