Pentair Triton II TR 24" Fiberglass Sand Filter | Backwash Valve Required-Not Included | TR60 EC-140264 Parts

Back to Product

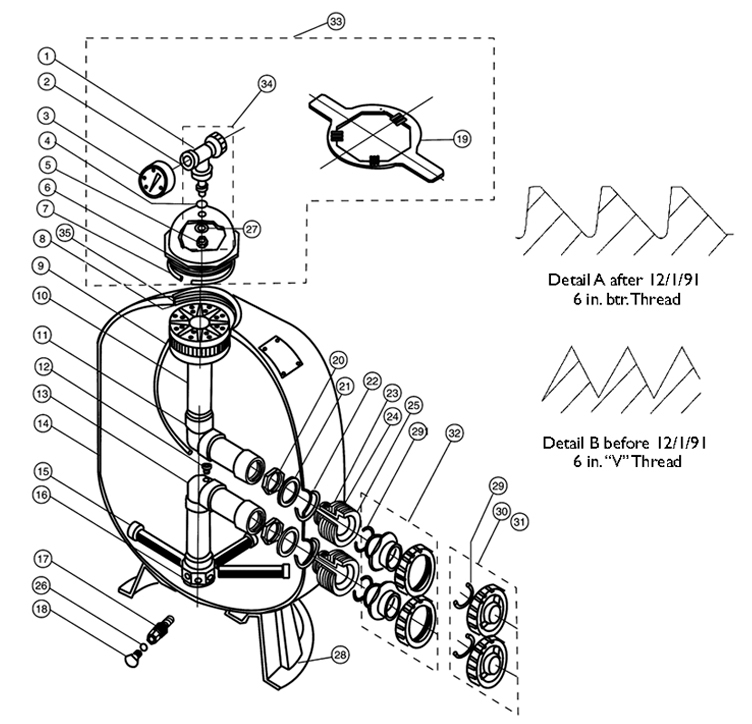

Pentair Triton II TR 24" Fiberglass Sand Filter | Backwash Valve Required-Not Included | TR60 EC-140264 Parts Schematic

1

Pentair Air Bleed Valve Tee Assembly | 154689 154689Z

2

PENTAIR 154700 ADAPTOR F/BRASS AIR BLEED VLV

3

Pentair OEM Pressure Gauge with Clean-Dirty Indicator | .25" NPT Back Mount | 190059 190059Z

4

Pentair O-Ring for Air Bleed Adapter | 154661

5

PENTAIR 154664 NUT 3/8"-16 SS MYTILUS B FILTE

6

PENTAIR 154559 CLOSURE 6" V THRD

6

PENTAIR 154570 CLOSURE 6" BUTTRESS THRD BLK

7

Pentair O-Ring Closure Triton II 154493

8

Pentair Old Style Air Relief Screen Cap | 154578

9

PENTAIR 154436 BEFORE 11/1/99 AIR RELIEF TUBE TR50/TR60

9

PENTAIR 150040 AFTER 11/1/99 AIR RELIEF TUBE TR50/60 NEW

10

Pentair Diffuser Assembly TR Series Sands Filters | 154599

11

PENTAIR 154533 PIPING ASSEMBLY UPPER TR60

12

Pentair Before 2/89 Connector Air Relief Tube | 154440

12

PENTAIR 150036 AFTER 11/1/99 CONNECTOR AIR RELIEF TUBE

13

PENTAIR 154805 PIPING ASSEMBLY LOWER TR60

13

PENTAIR 155284 CLEARPRO PIPING ASSEMBLY LOWER

14

PENTAIR 154638 AFTER 12/1/91 TANK & FOOT ASSEMBLY TR60

15

Pentair PacFab Sand Filter 6-11/16" Lateral | 152290 152290Z

15

PENTAIR 150085 LATERAL SD80/SD60 X-LONG

15

PENTAIR 150088 CLEARPRO LATERAL ASSY

16

PENTAIR 154763 HUB LATERAL TR40/TR50/TR60

16

PENTAIR 155753 HUB ADPT ASSY TR SAND FILTERS

17

PENTAIR 154685 BEFORE 3/83 SPIGOT 1/2" NPT SAND DRAIN

17

PENTAIR 154698 AFTER 10/1/01 SPIGOT 3/4" NPT SAND DRAIN

18

PENTAIR 154481 DRAIN PLUG 1/4" BLK HYDROPUMP

18

154699 PLUG 1/4" NPT DRAIN

18

PENTAIR 154871 CAP THREADED 1-1/2" TRITON II

19

PENTAIR 154512 WRENCH 6" CLOSURE TRITON II

19

PENTAIR 154510 WRENCH 6" CLOSURE ALUMINUM

20

Pentair Locknut Internal 2" 154412

21

Spacer Internal 2" Triton II 154416

22

Pentair O-Ring 2" Bulkhead 3 Req 154492

23

Pentair Spacer External 2" Triton II 154408

24

Pentair Gasket For 2'' Bulkhead 2 Req | 154538

25

Pentair Bulkhead 2" 2 Req Triton II | 154405

26

Pentair Drain Plug O-Ring 1/16"x1/2" | 192115 192115Z

27

PENTAIR 154418 WASHER 3/8" SS

28

PENTAIR 154520 FOOT F/TANK 19" DIAMETER TR60

29

Pentair O-Ring Valve Adapter O-83 274494

30

PENTAIR 271092 VALVE ADAPTOR KIT 2" THD PAIR

31

PENTAIR 271094 PAIR VALVE ADAPTOR KIT 1-1/2" THD

32

Pentair 1.5" & 2" Threaded adapter kit (2 adapters included) for installations without valve | 271096

33

Pentair Kit Closure 6" Butt Third Black | 154641

33

PENTAIR 154697 KIT CLOSURE 6" V THRD TAN

33

Pentair PacFab 8.5" Black Closure Butress Kit Threaded | 154856

34

PENTAIR 154687 AIR BLEEDER PACKAGE COMPLETE

35

PENTAIR 154612 SPACER AIR VENT TR50 TR60

n/s

PENTAIR 154402 TAPE FOOT MOUNTING TR40/50/60

n/s

PENTAIR 151602 BULKHEAD WRENCH 2" TRITON II

n/s

PENTAIR 154714 BULKHEAD ASSEMBLY INTERNAL

n/s

PENTAIR 151608 WRENCH 9" CLOSURE TA100D
