Raypak Digital Low NOx ASME Certified Natural Gas Commercial Pool Heater 399k BTU | Cupro Nickel Exchanger | C-R407A-EN-X 010230 | B-R407AL-EN-X 017712
Parts

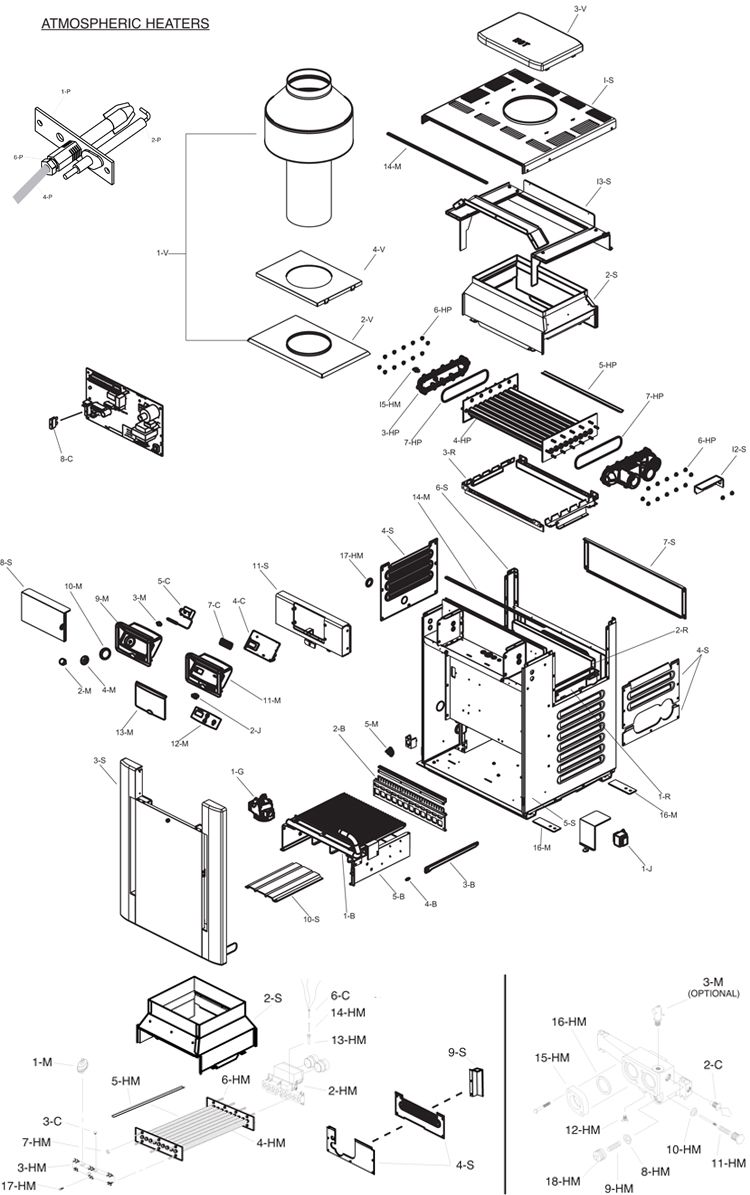

Raypak Digital Low NOx ASME Certified Natural Gas Commercial Pool Heater 399k BTU | Cupro Nickel Exchanger | C-R407A-EN-X 010230 | B-R407AL-EN-X 017712 Parts
Back to Product
1-B
Raypak Burner Tray with Burners R407 | 010346F
Quantity:
$1,167.71
1-B
Raypak Burner Tray without Burners R407 | 010087F
Quantity:
$693.38
2-B
010257F BURNER HOLDDOWN R407
Quantity:
$105.04
5-B
RAYPAK 010042F BLOWER COMB AIR 207-407 KIT
Quantity:
$310.02
7-B
RAYPAK 010871F COOLING FAN KIT LOWNOX 207-407
Quantity:
$98.90
1-C
Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F
Quantity:
$45.78
2-C
Raypak High Limit Switch 135 Degree - Red Epoxy | 600892B
Quantity:
$51.24
3-C
Raypak High Limit Switch 140 Degree - Black Epoxy | 600893B
Quantity:
$53.71
4-C
Raypak PC Control Circuit Board 185B-405B 206A-406A 207A-407A | 013464F
Quantity:
Please call us to order this item.
5-C
Raypak LCD Display Board for New Style 206-408 Models Only | 013640F
Quantity:
Please call us to order this item.
6-C
Raypak Temperature Sensor for Electronic IID Digital Display Models | 009577F
Quantity:
$67.23
7-C
RAYPAK 010355F BLOWER PRESSURE SWITCH 407A
Quantity:
$81.84
1-G
RAYPAK 010329F GAS VALVE ON/OFF NG 3/4"
Quantity:
$297.39
1-HP
010359F HEAT EXCH 406/407 CUPRO NICKEL
Quantity:
$2,368.45
2-HP
Raypak In Out Capron Header Assembly with Gasket | 006827F
Quantity:
$550.22
2-HP
Raypak In-Out Capron Header Assembly with Gasket | 006706F
Quantity:
$451.05
3-HP
Raypak Return Capron Header Asembly with Gasket | 006707F
Quantity:
$124.44
4-HP
010367F 406/407 TUBE BUNDLE CUPRO NICKEL KIT
Quantity:
$1,558.27
5-HP
Raypak Baffle Kit Model 406A | 010041F
Quantity:
$174.21
6-HP
Raypak Flange Nut Kit 1/4"-20 | 008259F
Quantity:
$34.35
7-HP
Raypak O-Ring Gasket Set | 2 Included | 006713F
Quantity:
$35.27
8-HP
Raypak Sensor Well for Millivolt Models with Capron Header | 006805F
Quantity:
$56.15
9-HP
Raypak Bypass Kit for Capron Headers | 006715F
Quantity:
$66.72
10-HP
Bypass Valve Capron 006716F
Quantity:
$43.58
11-HP
006717F BYPASS DAM/SHAFT CAPRON
Quantity:
$52.74
12-HP
Raypak Bypass Spring Capron Headers | 006718F
Quantity:
$39.05
13-HP
Raypak Unitherm Governor | Capron Header Models | 006719F
Quantity:
$66.92
14-HP
Raypak Plug Unitherm Governor Capron | 006720F
Quantity:
$47.70
15-HP
Raypak Drain Plug for Capron Headers | 006721F
Quantity:
$28.81
17-HP
Raypak Heater Connector Set 2" PVC | Includes 2-Tail Pieces, 2-Nuts, 2-O'Rings | 006723F
Quantity:
$65.52
18-HP
Raypak O-Ring Kit for 2" Connector 185-405, 206-406, 207-407 | 006724F
Quantity:
$18.35
19-HP
Header Baffle Kit 185-405 006826F
Quantity:
$77.28
1-HM
010363F 406A ASME HEAT EXCHANGER CUP-NIC
Quantity:
$2,583.87
2-HM
Raypak Inlet/Outlet Header ASME-CI 006730F
Quantity:
$468.36
4-HM
Tube Bundle Cupro 406/407 010371F
Quantity:
$1,589.64
5-HM
Raypak Baffle Kit Model 406A | 010041F
Quantity:
$174.21
7-HM
Raypak Header Gaskets | 9 Gaskets per Set | 800014B
Quantity:
$29.32
7-HM
Raypak Header Gaskets | 9 Gaskets per Set | 800014B
Quantity:
$29.32
8-HM
Raypak Unitherm Governor Versa & RP2100 Models | 062234B
Quantity:
$68.63
10-HM
Raypak Bypass Valve 105A-405 206-407 | 062235B
Quantity:
$78.93
12-HM
Raypak Drain Valve 013793F 206A-406A | 013793F
Quantity:
$52.39
13-HM
RAYPAK 003765F SENSOR WELL KIT VERSA
Quantity:
$83.68
14-HM
Raypak Bulb Retainer Clip | 300203
Quantity:
$21.00
3-HM
Raypak Cast Iron Rear Header Assembly ASME | Gaskets Not Included | 006731F
Quantity:
$176.29
15-HM
Raypak Inlet & Outlet Flange Kit Bronze | 2-Bolts 2-Flanges 4- Gaskets (1.5" & 2") | 003766F
Quantity:
$92.48
16-HM
Raypak Flange Gasket Set 1.5 Connections | 2-Gaskets per Set | 062236B
Quantity:
$71.08
16-HM
Raypak Flange Gasket Set 2" Connections | 2-Gaskets per Set | 800080B
Quantity:
$30.95
17-HM
Raypak Rear Drain Plug & Cover 005264F
Quantity:
$56.97
1-J
Raypak Transformer IID Electronic Heaters 120V-240V Kit with Wire Harness | 006736F
Quantity:
$88.98
2-J
Raypak Rocker Switch Digital Heaters | 009493F
Quantity:
$39.01
3-J
Raypak Relay Low NOx Units R185B-R405B | 008784F
Quantity:
$65.92
1-M
Raypak Pressure Switch 1.75 PSI | 006737F
Quantity:
$57.30
1-M
Raypak Heater Pressure Switch 11 PSI | 009133F
Quantity:
$56.93
2-M
Raypak Roll Out Switch 300� Thermal Cutoff Fuse 006035F
Quantity:
$54.31
3-M
007224F 500038 PRV 125 PSI 261-401 & 263-403
Quantity:
$103.42
4-M
052871F DELIMING KIT VERSA 105A/105B
Quantity:
$286.22
5-M
010347F WIRE / HARNESS 207-407
Quantity:
$621.90
6-M
Raypak Control Bezel Assembly IID | 185B-405B, 206-406, 207-407 Models | 009491F
Quantity:
$187.83
7-M
Raypak Switch Decal Membrane | 009492F
Quantity:
$91.84
8-M
Raypak Control Bezel Cover Plate | Models 185B-405B, 206-406, 207-407 | 009487F
Quantity:
$51.44
11-M
RAYPAK 750125 PAINT POWDER GREEN
Quantity:
Please call us to order this item.
11-M
RAYPAK 750126 PAINT CHARCOAL GREY
Quantity:
Please call us to order this item.
12-M
011636 (HURRICANE TIE DOWN) GAS HEATER RESTRAINT BRACKET
Quantity:
$87.40
1-P
Raypak Heater Pilot Natural Gas IID Low Nox 207-407 | 010232F
Quantity:
$135.42
5-P
RAYPAK 010349F HI TENSION WIRE IID 207-407
Quantity:
$57.82
1-R
Raypak 207A 267A 337A 407A Digital Heater Refractory Kit | Left Right 2 Pcs| 010079F
Quantity:
$261.62
2-R
Raypak Front & Back Refractory Kit Model 407 | 010083F
Quantity:
$276.58
8-S
Raypak Rheem Poolstat Thermostat Cover and Lock Kit | 206-407 Models | 009505
Quantity:
$65.85
1-V
Raypak Indoor Stack Top 406, 407, & 408 Models | 9" Vent | 009841
Quantity:
$196.29
1-V
Raypak Outdoor Stack 406 & 407 Models | 9" Vent | 009837
Quantity:
$293.23
2-V
010333F STACK ADAPTER 406/407 KIT
Quantity:
$178.38
3-V
Raypak Pagoda Top 406A 407A | 010337
Quantity:
$138.72
4-V
011464F STACK ADAPTER OUTER 406/407
Quantity:
$89.83
