Century B2853V1 1 HP square flange pool pump motor, front viewCentury 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame In stock$32999

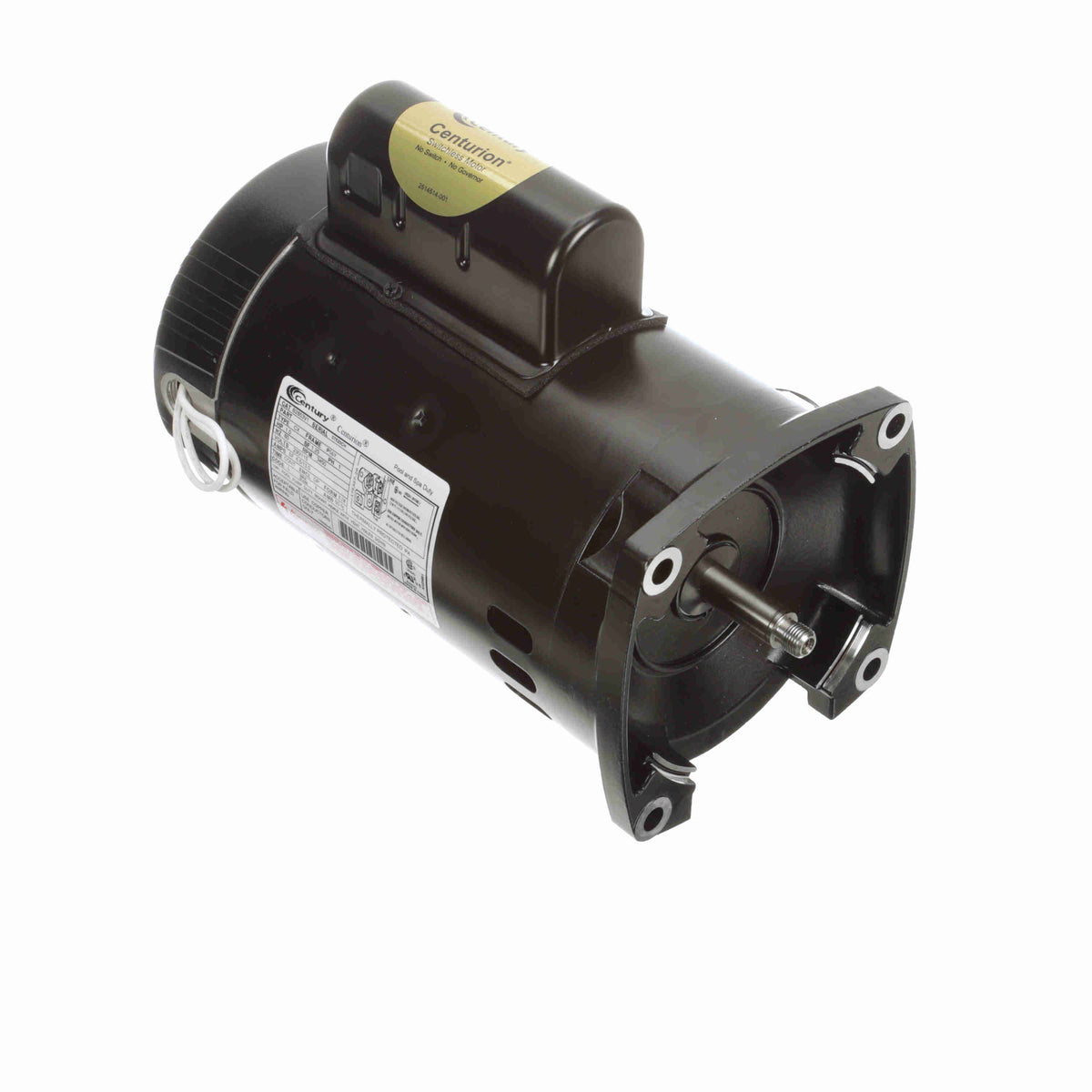

Century B2853V1 1 HP square flange pool pump motor, front view
Shop all Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame

Ask a questionMPN B2853V1
$32999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 1 HP, dual voltage 1.0 HP at 230 or 115 V, single phase, 60 Hz, 3450 rpm, 1.25 service factor.
  • Square flange, threaded shaft P56Y frame with a 0.625 in. stainless steel shaft and 1/2 in. thread.
  • Direct replacement takes the place of A.O. Smith B283 and B2853.
  • Fits the common pads Jandy PlusHP PHPM/PHPF (2006 on) and Stealth SHPF/SHPM (2008 on), Pentair Challenger, WhisperFlo and SuperFlo, Sta-Rite Super Max.
  • Switchless PSC design permanent split capacitor with no start switch to burn, sealed ball bearings, drip proof, thermally protected, 50 C ambient.
  • Not for California not Title 20 compliant; cannot be sold or installed in California.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, SKU MGT-60-2987. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame

$32999
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V

$35099
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame

$63899
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V

$42499
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft

$35099
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP

$29699
Century Full-Rated Two-Speed Motor, 1.5 HP 1.47 SF 230V (B2983)
Century Motors

Century Full-Rated Two-Speed Motor, 1.5 HP 1.47 SF 230V (B2983)

$58899
Subtotal

Similar products

Other products people compare with this one.

Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48Y Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft$28399 Century UST1072 up rated .75 HP pool pump motor, 115/230 V, 56J frame, front view Century Pump Motor, Up Rated, .75 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft$26299 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange$36999 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$30599 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$39199 Century QC1072 full rated 3/4 HP 48Y frame pool pump motor, 115/230V Century Motor, Full Rated, 48Y Frame, .75 HP, 3450 RPM, 115/230V$37699 Century B2846 square flange full rated pool and spa pump motor, 0.5 HP Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$28499 Century HSQ220 Centurion Pro square flange pool and spa pump motor, 48Y frame Century Pro Square Flange Motor, 2.2 THP, 3450 RPM, 230V, 48Y, Threaded Shaft$42899 Century Centurion Pro HST225 2.25 HP pool pump motor, 56J frame threaded shaft Century Centurion Pro HST225 Motor, 2.25 HP, 3450 RPM, 115/208-230 V, 56J, Threaded Shaft$42399 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V$45099
Century BN40SS 2 HP thru-bolt pool and spa pump motor, 115/230V, 48Y frame Century ODP Thru-Bolt Pool and Spa Pump Motor, 2 HP, 115/230V, 48Y Frame$33799 Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$27399 Century B229SE 1.5 HP threaded shaft up rated pool pump motor Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$35499 Century B127 3/4 HP pool pump motor, front view Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft$28699 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed$48599 Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V Century 1 HP Square Flange Up-Rated Motor, 115/230V$32399 Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V$33199 Century B2977 2.5 HP 56J frame two speed C-face pool pump motor Century C-Face Pool Pump Motor, 2.5 HP, 56J Frame, 2-Speed$49399 Century B227SE 3/4 HP 56J frame threaded shaft pool pump motor Century 56J Threaded UR .75 HP 115/230V Pool Pump Motor$27799 Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V$30099

Product details

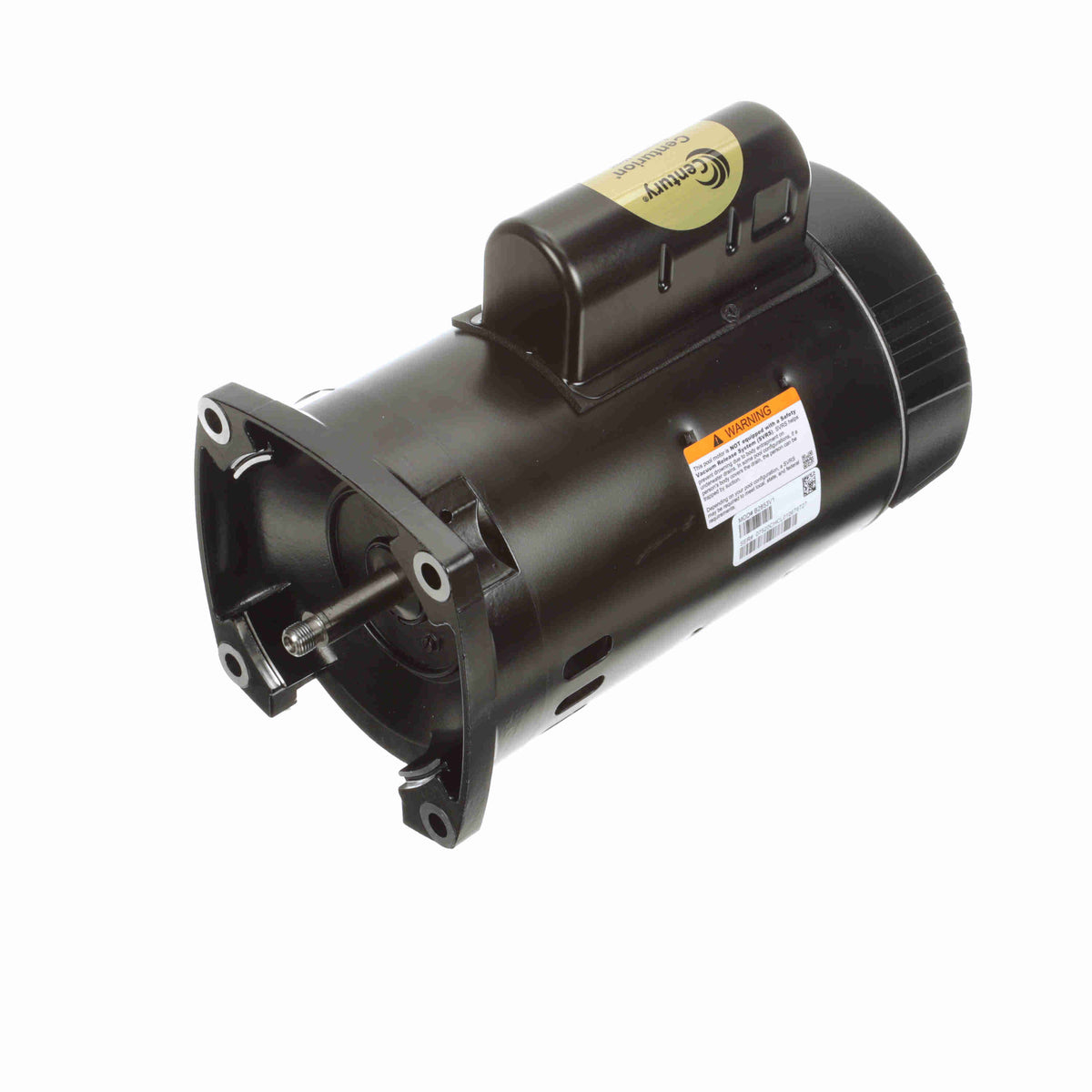

The Century B2853V1 is a single speed 1 HP square flange pool pump motor, dual voltage at 230 or 115 V, turning 3450 rpm on the P56Y frame with a threaded shaft. It is the current replacement for the A.O. Smith B283 and B2853, and it fits the pumps those motors came on.

Where it goes

Jandy PlusHP PHPM and PHPF pumps from 2006 onward, Jandy Stealth SHPF and SHPM from 2008 onward, Pentair Challenger, WhisperFlo and SuperFlo, and the Sta-Rite Super Max. Match the square flange, the 56Y frame and the threaded shaft to the motor coming off.

Nameplate and construction

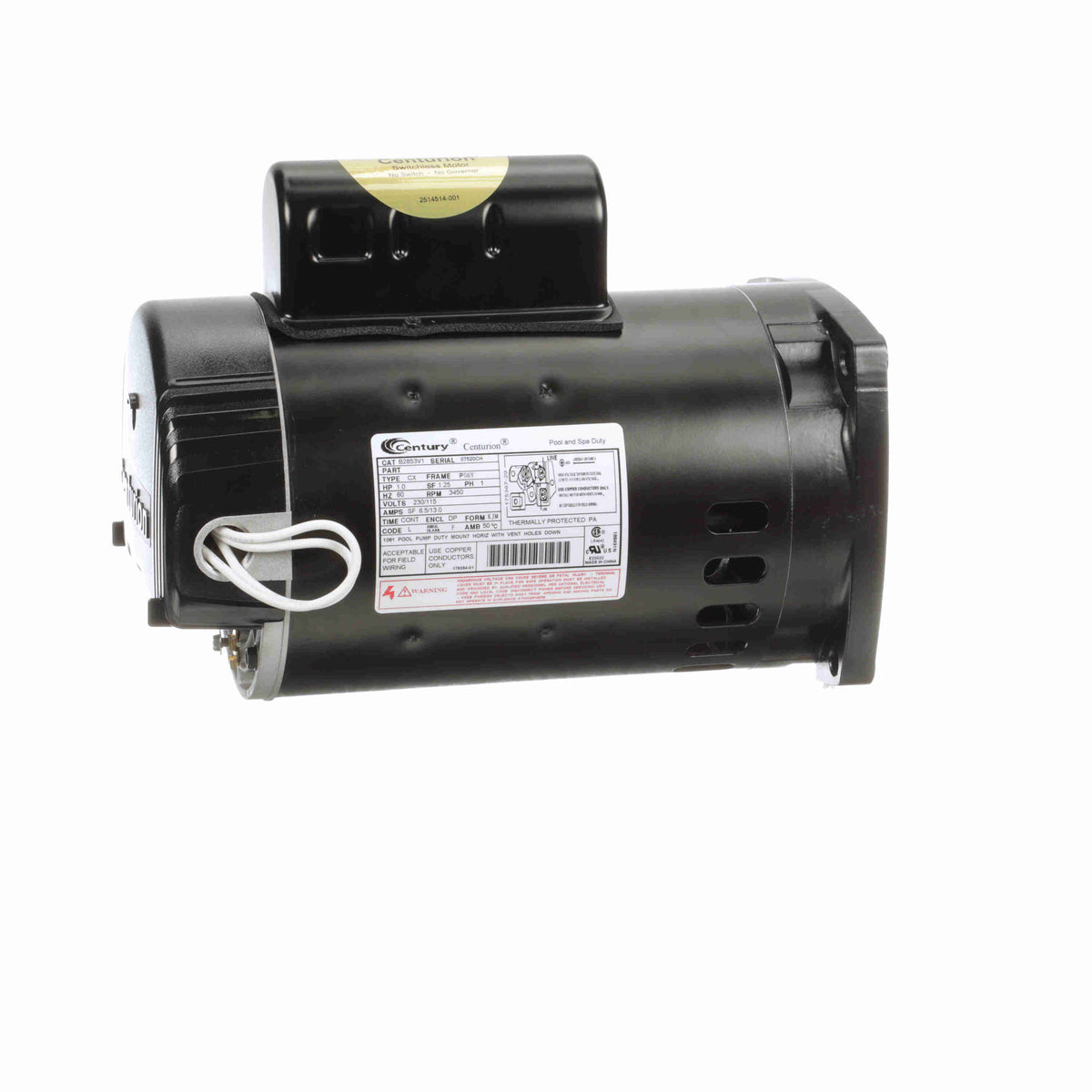

1.0 HP, 0.75 kW, 1.25 service factor, 6.5 A at 230 V and 13.0 A at 115 V under service factor load. It is a switchless permanent split capacitor motor started across the line, with sealed ball bearings at both ends, a stainless steel shaft (0.625 in. diameter, 1/2 in. thread, 0.910 in. extension) and a rolled steel drip proof frame. Thermally protected, Class F insulation, continuous duty at 50 C ambient, UL recognized and CSA certified. Overall length is 12.44 in. with an 8.00 in. frame, counterclockwise rotation from the pump end.

California

This motor is not California Title 20 compliant and cannot be sold or installed in California. Century's V-Green EVO variable speed motors (EVC130, EVC165, EVC225, EVQ130, EVQ165, EVQ225) are the CEC compliant alternatives.

Specifications
Brand Century
Manufacturer part number B2853V1
UPC 786674071644
Output 1.0 HP, 0.75 kW
Voltage 230/115 V
Speed 3450 rpm, single speed
Service factor 1.25
Frame P56Y square flange
Enclosure Drip proof, thermally protected
Phase and frequency 1 phase, 60 Hz
Current SF 6.5/13.0 A
Electrical type Permanent split capacitor, switchless
Shaft 0.625 in. diameter, 1/2 in. thread, 0.910 in. extension, stainless steel
Overall length 12.44 in.
Replaces A.O. Smith B283, B2853
Used with Jandy PHPM/PHPF 2006 to current, Jandy SHPF/SHPM 2008 to current, Pentair Challenger, WhisperFlo, SuperFlo, Sta-Rite Super Max
California Not Title 20 compliant, not for sale in California
Shipping weight 33 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does it fit?
Jandy PlusHP PHPM and PHPF pumps from 2006 on, Jandy Stealth SHPF and SHPM from 2008 on, Pentair Challenger, WhisperFlo and SuperFlo, and the Sta-Rite Super Max. It is a 56Y square flange motor with a threaded shaft.
Can I run it on 115 V?
Yes. The motor is rated 230/115 V, single phase, 60 Hz. Set it for the voltage at your pump before it is powered.
Is this the replacement for my A.O. Smith B2853?
Yes. The B2853V1 replaces both the A.O. Smith B2853 and the B283.
Why can it not ship to California?
It does not meet the California Energy Commission Title 20 standard for pool pump motors, so it cannot be sold or installed there. Century's V-Green EVO motors (EVC130, EVC165, EVC225, EVQ130, EVQ165 and EVQ225) are the compliant options.
