Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filtersSta-Rite Valve and Gauge Assembly for System 3 Filters In stock$11499
Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters
Shop all Sta-Rite

Sta-Rite Valve and Gauge Assembly for System 3 Filters

Ask a questionMPN 24850-0105
$11499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

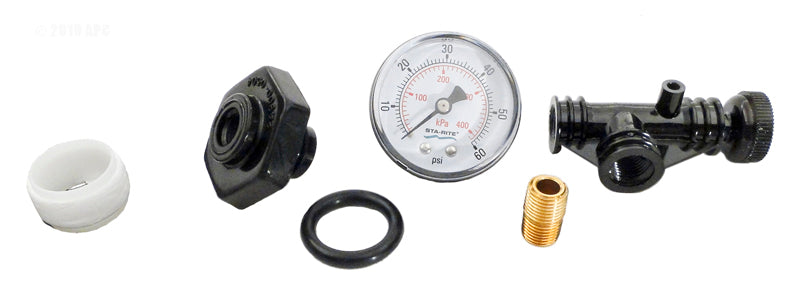

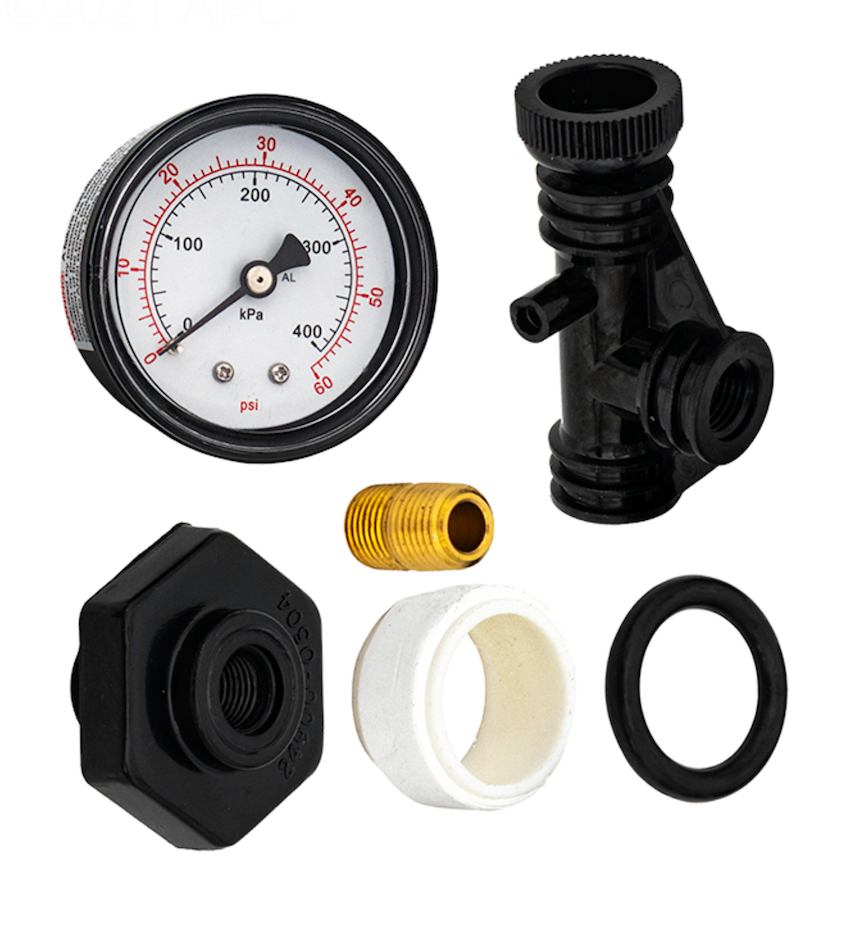

  • Complete assembly pressure gauge, tee, 1/4 in. nipple, adapter bushing and o-ring in one kit.
  • Fits System 3 cartridge filters SM series S7M120, S7M400, S8M150 and S8M500.
  • Fits System 3 DE filters SD series S7D75 and S8D110.
  • Fits the System 3 sand filter SS series S8S70.
  • Two jobs in one part bleeds trapped air from the top of the tank and reads filter pressure.
  • Genuine Sta-Rite Pentair OEM part 24850-0105.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Sta-Rite Valve and Gauge Assembly for System 3 Filters, SKU STA-051-2592. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Sta-Rite Valve and Gauge Assembly for System 3 Filters
Sta-Rite

Valve and Gauge Assembly for System 3 Filters

$11499
Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S
Pentair

Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S

$47999
Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids)
Unicel Filter Cartridges

Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids)

$25399
Pentair Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters
Pentair

Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters

$1199
Pentair Genuine OEM Triton II Air Relief Tee Assembly
Pentair

Genuine OEM Triton II Air Relief Tee Assembly

$3599
Pentair Genuine OEM Sand Filter Drain Cap
Pentair

Genuine OEM Sand Filter Drain Cap

$3525
Sta-Rite 21 in. Filter Tank O-Ring, System 3
Sta-Rite

21 in. Filter Tank O-Ring, System 3

$7299
Subtotal

Similar products

Other products people compare with this one.

Sta-Rite 25021-0101 baffle and bulkhead fitting for System 3 cartridge filters Sta-Rite Baffle and Bulkhead Fitting for System 3 Cartridge Filters$7999 Sta-Rite 24850-0200 clamp assembly for System 3 pool filters Sta-Rite Clamp Assembly For System 3 Filters$14299 Sta-Rite 25021-0100Z System:3 elbow and bulkhead assembly Sta-Rite System:3 Elbow and Bulkhead Assembly$10999 Sta-Rite 27001-0060S tank o-ring for filters built before 2/97 Sta-Rite O-Ring for Tank Before 2/97$6299 Pentair 155333P base for filter and pump Pentair Base for Filter and Pump$10399 Sta-Rite 24850-0009Z 25 in. filter tank O-ring for System 3 filters Sta-Rite 25 in. Filter Tank O-Ring, S8D110$7999 Pentair 152227 stand pipe assembly for Sand Dollar SD60 sand filter Pentair Genuine OEM Stand Pipe Assembly SD60$13299 Pentair 190059Z OEM pressure gauge with indicator for pool filters Pentair OEM Pressure Gauge with Indicator$6099 Pentair 152000 standpipe assembly for the Cristal-Flo SD70 sand filter Pentair Cristal-Flo SD70 Standpipe Assembly$13099 Pentair 155709 pump to filter connection assembly for Sand Dollar above ground filter systems Pentair Pump to Filter Connector SD35$7099
Sta-Rite 24850-0010 T-bolt clamp assembly for System 3 pool filters Sta-Rite T-Bolt Assembly for System 3 S7S50 and S8S70 Filters$4199 Sta-Rite 25010-0200 air relief valve assembly for PLD and PTM filter systems Sta-Rite Air Relief Valve Assembly for PLD and PTM Filter Systems$4699 Sta-Rite 24900-0504 adapter bushing for System 3 filters Sta-Rite Adapter Bushing for System 3 Filters$2899 Sta-Rite 35505-1429 O-ring for System 3 cartridge filters Sta-Rite O-Ring for System 3 Cartridge Filters$1399 Sta-Rite 27001-0030S upper tank shell half with air relief valve for System 2 PLM300 Sta-Rite Tank Upper Half with Air Relief Valve for System 2 PLM300$48499 Sta-Rite 24851-9001 25 in. upper half tank kit for System 3 filters Sta-Rite 25" Upper Half Tank Kit for System 3 Filters$129199 Sta-Rite 24801-0101 manifold for System 3 S8D110 DE filter Sta-Rite Manifold for System 3 S8D110 DE Filter$18199 Sta-Rite 24800-0100Z manifold for System 3 S7D75 DE filter Sta-Rite Manifold for System 3 S7D75 DE Filter$18699 Sta-Rite WC9-3 black tank o-ring for Posi-Flo II PTM cartridge filters Sta-Rite Black Tank O-Ring for Posi-Flo II PTM Cartridge Filters, WC9-3$4099 Sta-Rite 24900-0503 drain plug for System 3 filters Sta-Rite Drain Plug for System 3 Models$4099

Product details

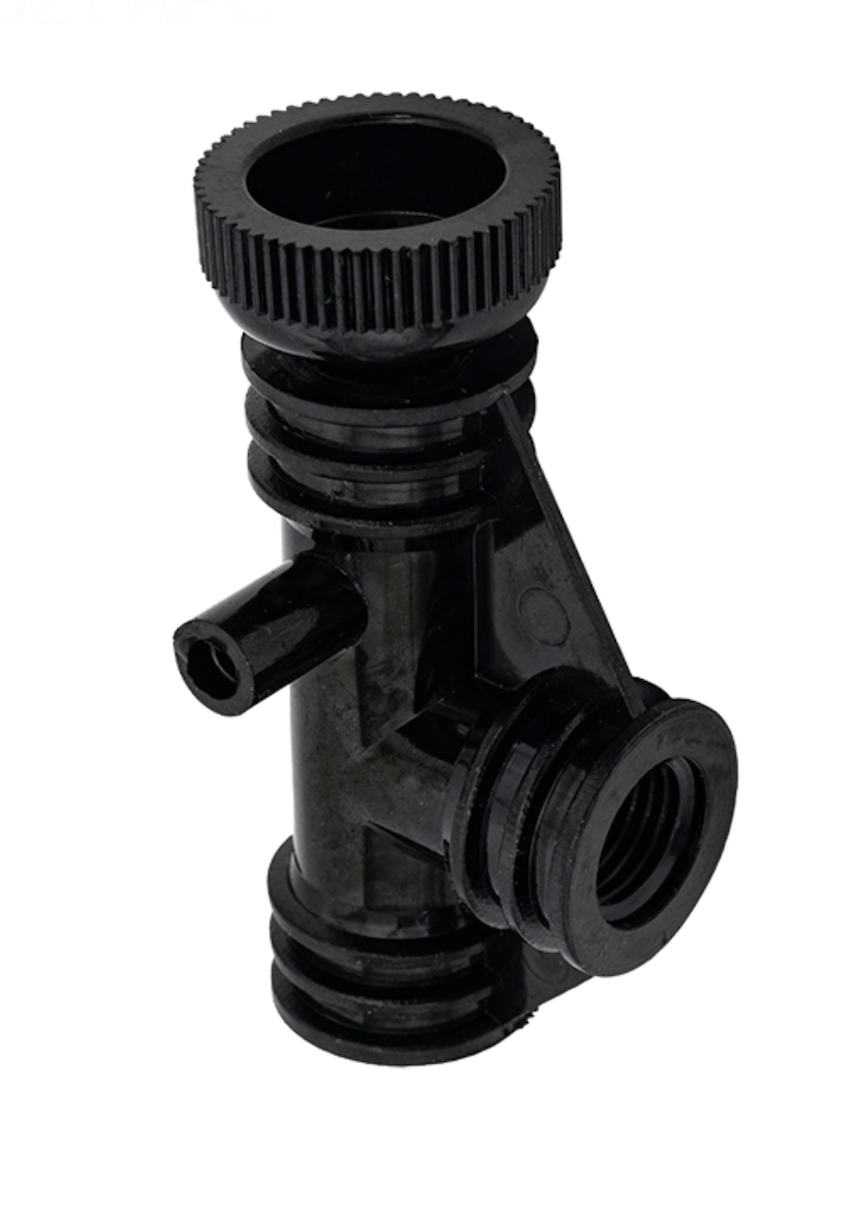

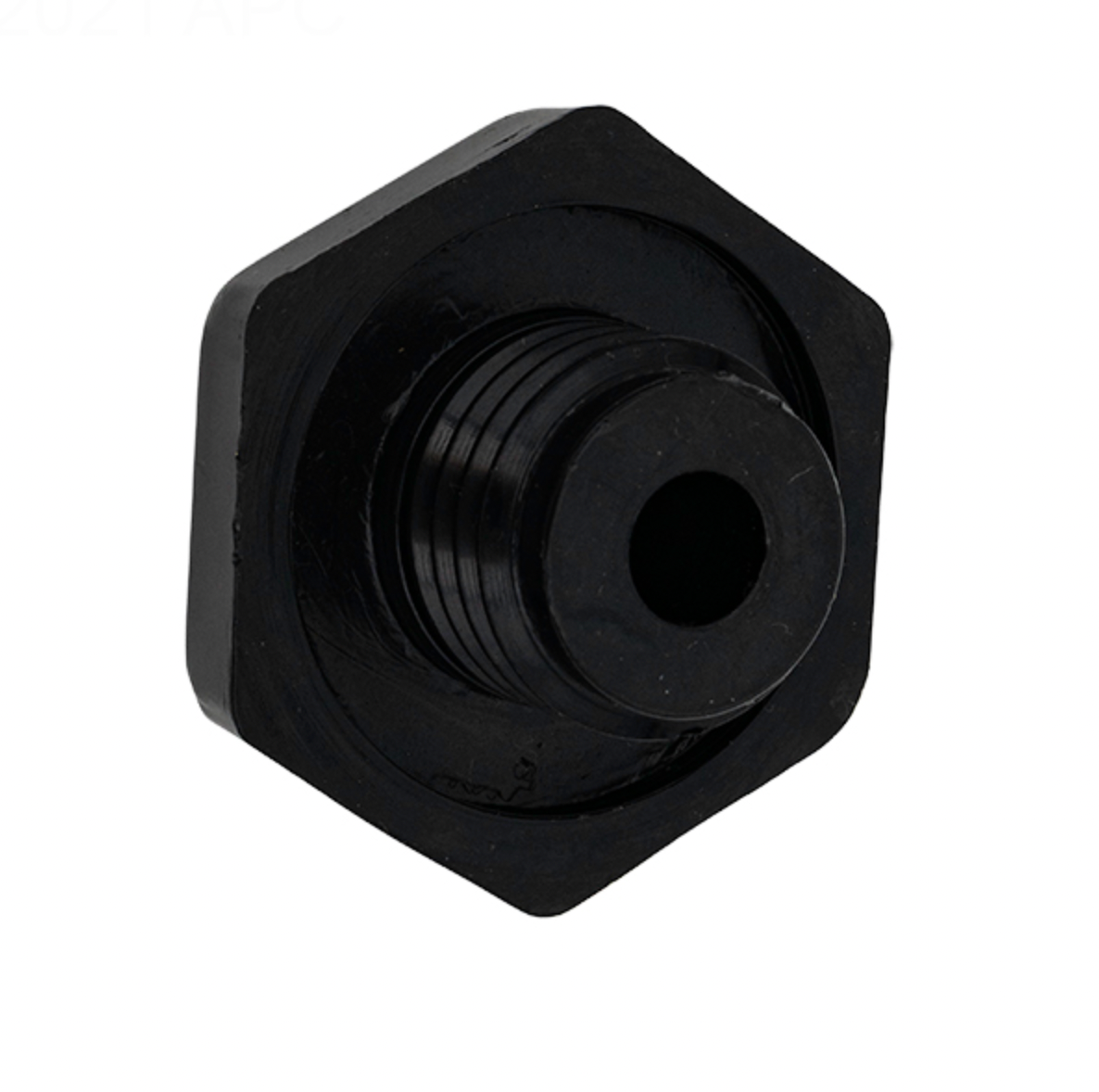

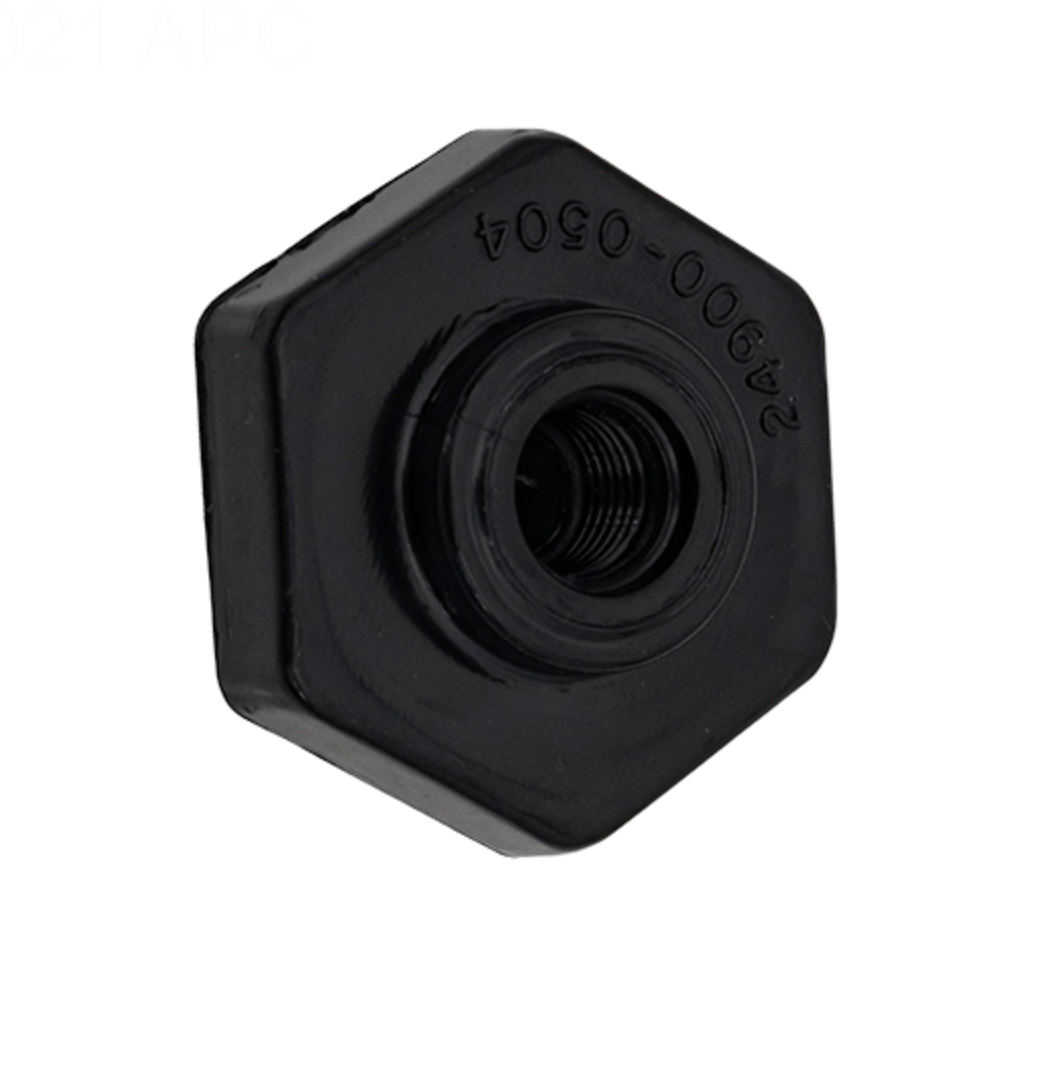

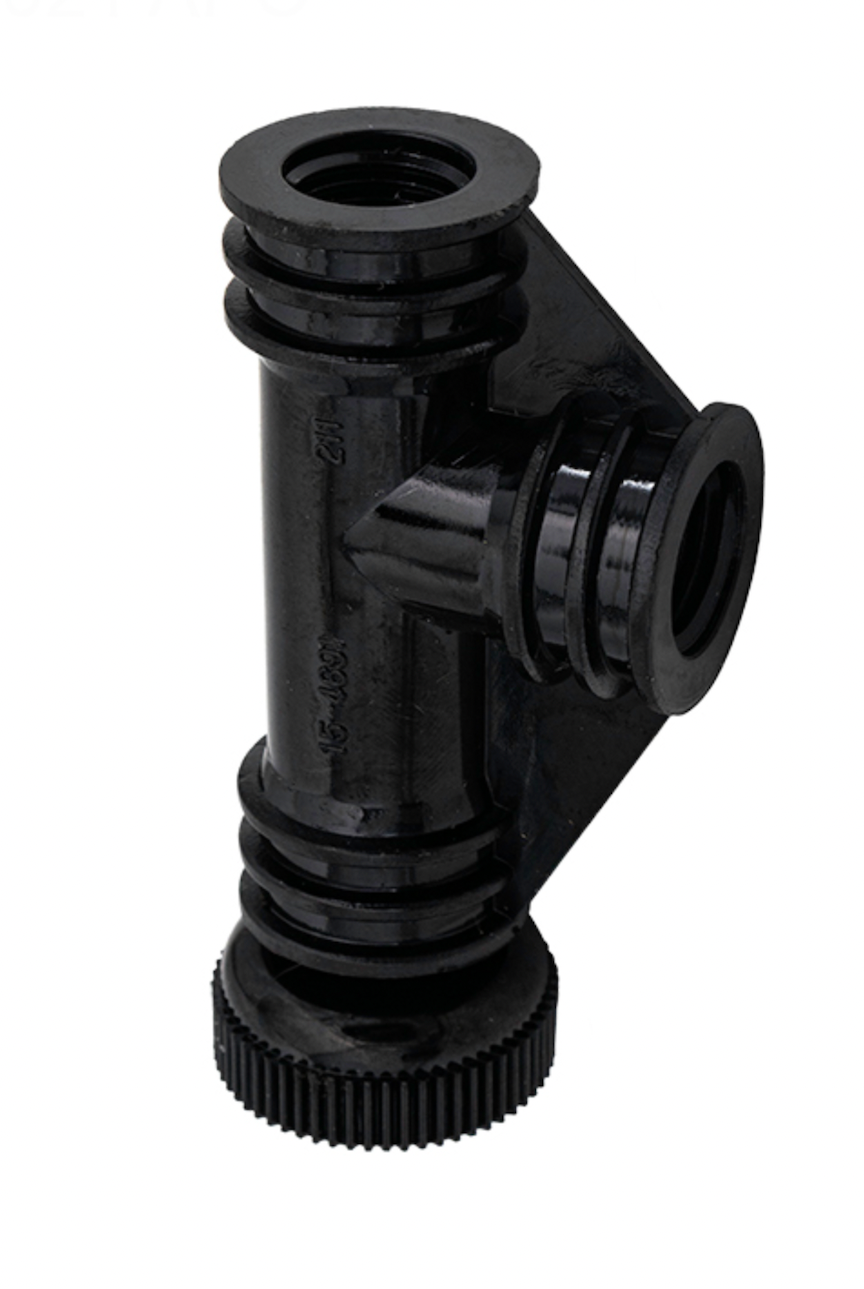

The Sta-Rite 24850-0105 is the air relief valve and pressure gauge assembly for System 3 filters. It is the genuine Pentair part and comes as a complete kit: the pressure gauge, the tee, a 1/4 in. nipple, an adapter bushing and the o-ring.

What it does

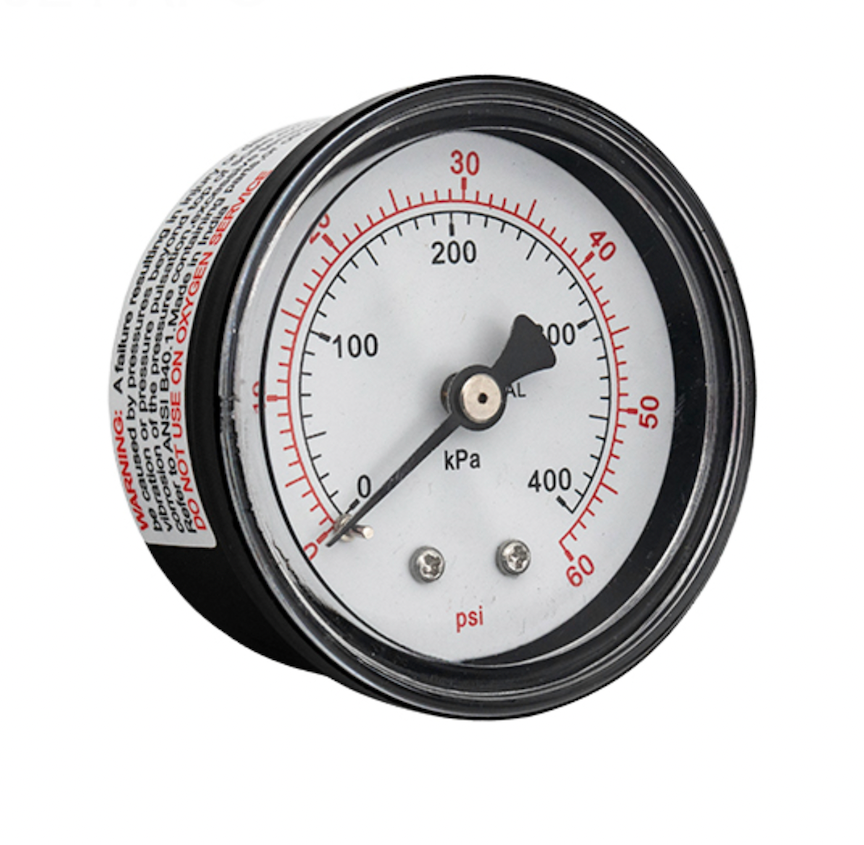

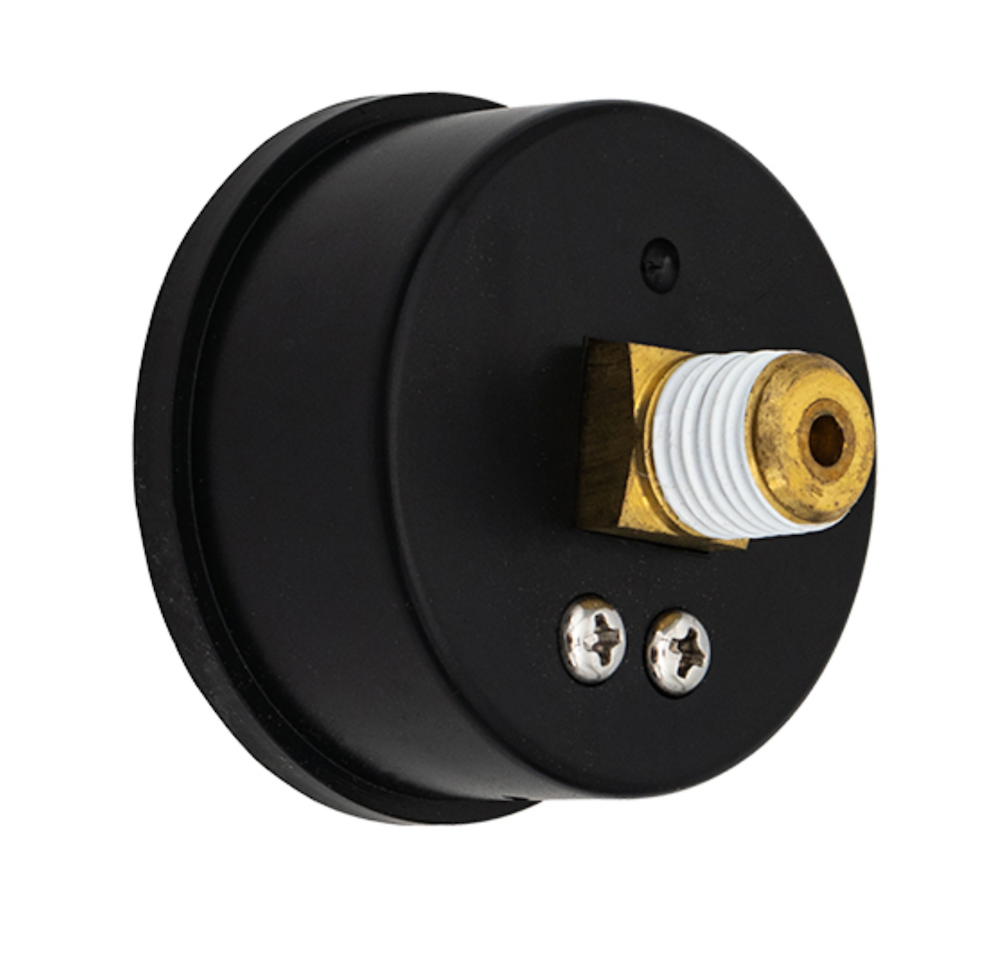

The gauge is how you read the filter. Clean pressure tells you the baseline, and a rise of several psi tells you it is time to clean the cartridges, backwash the DE or the sand. The valve above it bleeds the air that collects at the top of the tank after a cartridge clean or when the pump is primed. A gauge stuck at zero, a cracked lens or a valve that will not seal are the reasons this assembly gets replaced.

Fit

It fits across the System 3 line: the SM series modular media cartridge filters S7M120, S7M400, S8M150 and S8M500, the SD series DE filters S7D75 and S8D110, and the SS series sand filter S8S70. The internal air bleed assembly is a separate part.

Specifications
Brand Sta-Rite
Manufacturer part number 24850-0105
UPC 788379828752
Type Air relief valve and pressure gauge assembly
Fits, cartridge System 3 SM series S7M120, S7M400, S8M150, S8M500
Fits, DE System 3 SD series S7D75, S8D110
Fits, sand System 3 SS series S8S70
Included Pressure gauge, tee, 1/4 in. nipple, adapter bushing, o-ring
Part type Pool filter part
Shipping weight 0.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit$55499 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly$15699 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids)$25399 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws$3699 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro$31399 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media$58699 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S$79199 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black$29599 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit$9799
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in.$15999 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II$30599 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters$38599 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater$125999 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate$7299 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer$4099 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap$3525 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black$126499 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch$16199 Sta-Rite 24850-0008Z 21 in. filter tank o-ring for System 3 filters Sta-Rite 21 in. Filter Tank O-Ring, System 3$7299

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does it fit?
Sta-Rite System 3 filters: the SM series cartridge models S7M120, S7M400, S8M150 and S8M500, the SD series DE models S7D75 and S8D110, and the SS series sand model S8S70.
What is in the kit?
The pressure gauge, the tee it mounts in, a 1/4 in. nipple, an adapter bushing and the o-ring.
Is this the same as the Pentair 24850-0105?
Yes. Sta-Rite is a Pentair brand, and this assembly is sold under both names with the same part number.
Does it include the air bleed tube inside the tank?
No. The internal air bleed assembly is a separate part. This kit is the external valve, gauge and fittings on top of the tank.
