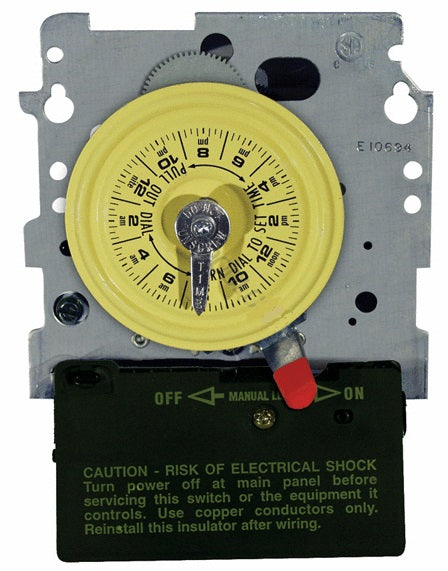

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277VIntermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only In stock$9599
Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V
Shop all Intermatic

Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only

Ask a questionMPN T104M
$9599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Mechanism only Drops into an existing T104 enclosure, so you keep the box and wiring.
  • DPST for 240V loads Two poles switch both hot legs of a 208-277V pump or heat pump.
  • 40 A per pole Handles filter pumps, heat pumps and lighting circuits.
  • Up to 12 on/off cycles a day Set as many trippers as the schedule needs across the 24-hour dial.
  • Manual override Run the pump outside the schedule without disturbing the trippers.
  • Proven design The same mechanical clock that has run pool pads for decades.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, SKU INT-30-669. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only

$9599
Intermatic 3" Standoff Spacer, 4 Pack
Intermatic

3" Standoff Spacer, 4 Pack

$1999
Intermatic On/Off Trippers Set
Intermatic

On/Off Trippers Set

$1199
Subtotal

Similar products

Other products people compare with this one.

Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V$6099 WPCTC replacement time clock for the WPC-2 wireless pool control S.R. Smith WPC-2 Replacement Time Clock for Pool Cleaner Booster$12399 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer$5599 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor$5199 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug$11499 Intermatic T101P3 24-hour 120V mechanical time switch, SPST, with Type 3R plastic enclosure Intermatic T101P3 24-Hour 120V Mechanical Time Switch, SPST, Type 3R Plastic Enclosure$9544 Intermatic T103M 110V time clock mechanism only Intermatic Time Clock Mechanism Only, 110V$9099 Intermatic P1101 outdoor mechanical plug-in timer with built-in enclosure Intermatic Outdoor Mechanical Plug-In Timer with Built-In Enclosure$6399 Intermatic PB913N66 24 hour panel mount time clock timer mechanism, 120V Intermatic Time Clock Timer Mechanism PF and RC Series Panel Mount 24hr 120V$5799
Intermatic T106M 208/277 volt SPDT time clock mechanism Intermatic T106M 208/277 Volt, SPDT Time Clock Mechanism$10499 Intermatic MECHANISM ONLY 120V | T101M Intermatic MECHANISM ONLY 120V | T101M$8699 Intermatic Complete Timer W Metal Case 120V | T101R3 Intermatic Complete Timer W Metal Case 120V | T101R3$13099 Aquabond LIGHT NICHE COMPOUND | ABP-1000 Aquabond LIGHT NICHE COMPOUND | ABP-1000$5099 Intermatic 2T2502GA beige plastic weatherproof case for the T100R timer Intermatic Beige Plastic Case for T100R$5076 Eaton Corporation Cutler-Hammer CUTLER HAMMER DUAL BREAKER 2 POLE 20/50 AMP | BQ220250 Eaton Corporation Cutler-Hammer CUTLER HAMMER DUAL BREAKER 2 POLE 20/50 AMP | BQ220250$4899 Intermatic 156T4042A heater control (fireman's) switch kit Intermatic Heater Control (Fireman's) Switch Kit$4799 Intermatic PB913N84 24 hour timer mechanism with mounting ears Intermatic 24 Hour Timer Mechanism, 2 On/Off with Ears$4599 Intermatic 15 Minute Spring Wound Timer | FF15MC Intermatic 15 Minute Spring Wound Timer | FF15MC$4599 Intermatic TIMER SPRNG WOUND 30MIN CLMSHL | FF30MC Intermatic TIMER SPRNG WOUND 30MIN CLMSHL | FF30MC$4599

Product details

The Intermatic T104M is the replacement clock mechanism for the T104 series 24-hour mechanical time switch. It runs on 208-277V, switches two poles and is rated for 40 A per pole, which covers a filter pump, a heat pump or a lighting circuit on a 240V pad. When the old clock stops turning or the contacts burn, this swaps in without replacing the enclosure or the wiring.

Scheduling

Trippers on the 24-hour dial set up to 12 on and off operations a day. A manual override lever runs or stops the load on demand and hands control back to the trippers on the next cycle.

Before you order

This is the mechanism only, with no box. It is DPST for 208-277V circuits. If your pump runs on 120V, the SPST T101 mechanism is the correct part.

Specifications
Brand Intermatic
Manufacturer part number T104M
UPC 078275000261
Type 24-hour mechanical time switch, mechanism only
Switch DPST
Clock supply 208-277 VAC, 60 Hz
Load rating Up to 40 A per pole
Operations Up to 12 on/off per day
Manual override Yes
Applications Filter pumps, heat pumps, lighting
Shipping weight 1.3 lb
Ships Parcel
Downloads
Owners Manual

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V$6099 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer$5599 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces$28572 Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism$27499 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box$6701 Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only$27799
Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure$12699 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug$11499 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer$34199 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure$13199 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor$5199 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces$37499 Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure$34399

Questions and answers

What people ask about this product, answered by our pool techs.

Does this include the metal box?
No. The T104M is the clock mechanism only. It replaces the mechanism inside an existing Intermatic T104 enclosure.
What voltage is it for?
The clock motor runs on 208-277V, 60 Hz. It is the mechanism for 220 to 240V pump circuits, not 120V. For 120V use the SPST T101 mechanism instead.
How many times a day can it switch?
Up to 12 on/off operations in 24 hours, set with trippers on the dial.
Can I run the pump outside the schedule?
Yes. The manual override lever turns the load on or off without moving the trippers, and the clock takes back over at the next tripper.
