Sta-Rite U9-375 trap cover o-ring, 6-1/4 inch inside diameterSta-Rite Trap Cover O-Ring In stock$2699
Sta-Rite U9-375 trap cover o-ring, 6-1/4 inch inside diameter
Shop all Sta-Rite

Sta-Rite Trap Cover O-Ring

Ask a questionMPN U9-375, O-12
$2699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two part numbers Carried as U9-375 and as O-12, both referring to this trap cover o-ring.
  • 6-1/4 inch inside diameter Measured ID of the ring, with a 1/4 inch cross section.
  • Trap lid seal This is the ring that seals the pump strainer pot lid, so it is the part that decides whether the pump holds prime.
  • Listed for Dyna-Glas and Dyna-Max Called out for Sta-Rite Dyna-Glas and Dyna-Max pumps from 3/4 through 2 HP.
  • Appears on more diagrams Also shown on the Sta-Rite Max-E-Glas II and Dura-Glas II and the Pentair Dyna-Wave pump parts diagrams.
  • Lubricate every time A silicone o-ring lubricant keeps the ring from sticking to the lid and tearing when the pot is opened next.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Sta-Rite Trap Cover O-Ring, SKU STA-101-7462. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Sta-Rite Trap Cover O-Ring
Sta-Rite

Trap Cover O-Ring

$2699
Sta-Rite Pump Tank Body Housing Assembly, IntelliPro
Sta-Rite

Pump Tank Body Housing Assembly, IntelliPro

$31399
Pentair Genuine OEM High Flow Diffuser O-Ring
Pentair

Genuine OEM High Flow Diffuser O-Ring

$1899
Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II
Sta-Rite

Tank Body Assembly for Max-E-Glas II and Dura-Glas II

$30599
Sta-Rite Max-E-Pro Seal Plate
Pentair

Sta-Rite Max-E-Pro Seal Plate

$7299
Sta-Rite Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated
Sta-Rite

Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated

$4499
Sta-Rite Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P
Sta-Rite

Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P

$17699
Subtotal

Similar products

Other products people compare with this one.

Sta-Rite U9-228A seal plate o-ring for Pinnacle pumps Sta-Rite Seal Plate O-Ring for Pinnacle$1799 Sta-Rite C8-58P Max-E-Pro pump trap basket Sta-Rite Max-E-Pro Trap Basket$1899 Sta-Rite 37337-6080 impeller screw for Dyna-Pro pumps Sta-Rite Impeller Screw for Dyna-Pro$3299 Sta-Rite C35-43 motor vibration pad for Max-E-Pro pumps Sta-Rite Motor Pad for Max-E-Pro Pumps$1499 Sta-Rite C30-12 impeller screw for Max-E-Glas and Dura-Glas pumps Sta-Rite Impeller Screw, 1.5 HP Thru 3 HP$1999 Aladdin GO-KIT79 seal and gasket kit for Sta-Rite Max-E-Pro pumps Aladdin Seal & Gasket Kit for Sta-Rite Max-E-Pro Series Pool Pumps$2999 Sta-Rite C108-33P strainer basket for Dura-Glas and Max-E-Glas pumps Sta-Rite Strainer Basket for Dura-Glas and Max-E-Glas Pumps$2199 SuperPro GO-KIT6V-9 Viton gasket and O-ring kit for Sta-Rite pumps SuperPro Viton Sta-Rite P2R Pump Seal Kit$3799 Sta-Rite J3-2 copper seal plate insert for pre 1998 pumps Sta-Rite Seal Plate Insert, Pre 1998$2399 Sta-Rite U43-21SS extended tooth lock washer for Sta-Rite and Pentair pumps Sta-Rite Extended Tooth Lock Washer$1599
Pentair 357099Z square ring for the seal plate on Max-E-Pro and IntelliPro pumps Pentair Square Ring, Seal Plate, Max-E-Pro / IntelliPro$1999 Pentair 350091Z clear strainer cover for SuperFlo pool pumps Pentair Strainer Cover for SuperFlo Pool Pump$3899 Pentair 16920-0012 pump lid O-ring for Sta-Rite Dura-Glas and Max-E-Glas pumps Pentair Pump Lid O-Ring for Dura-Glas and Max-E-Glas$3199 Pentair C8-58PZ Max-E-Pro strainer trap basket Pentair Max-E-Pro Strainer Trap Basket$2399 Pentair 16920-0017 strainer basket for a 6 inch pump trap Pentair Strainer Basket for 6" Trap$3999 Pentair 356197 chemical, salt and ozone resistant seal set for SuperFlo and SuperMax pumps Pentair SuperFlo and SuperMax Seal Kit, Chemical, Salt and Ozone Resistant$3999 Pentair 356196 chemical, salt and ozone resistant seal set for Max-E-Pro pumps Pentair Max-E-Pro Chemical, Salt, Ozone Resistant Seal Set$3899 Pentair 350093 union adapter for SuperFlo and SuperMax pool pumps Pentair SuperFlo and SuperMax Union Adapter$2399 Pentair OEM Pump Basket SuperFlo Pinnacle SuperMax | 355667 Pentair OEM Pump Basket SuperFlo Pinnacle SuperMax | 355667$3199 Sta-Rite 17307-0111S Max-E-Pro trap cover lid assembly Sta-Rite Max-E-Pro Trap Cover Lid Assembly$8499

Product details

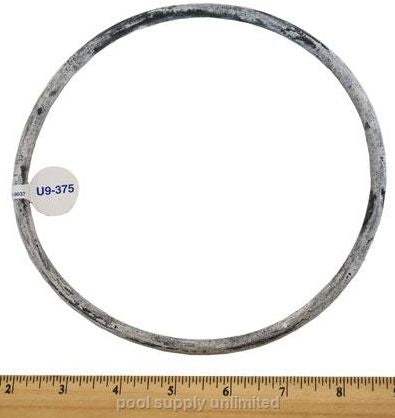

This is the trap cover o-ring for Sta-Rite pumps, carried as part number U9-375 and also as O-12. It measures 6-1/4 inches on the inside diameter with a 1/4 inch cross section, and it is listed for the Sta-Rite Dyna-Glas and Dyna-Max pumps from 3/4 through 2 HP.

Why it matters more than it looks

The trap cover o-ring is the seal between the strainer pot and its lid, which puts it on the suction side of the pump. Anything that is not airtight there does not leak water out, it draws air in. That is the difference between a pump that primes and holds and one that runs half full of air, loses flow, and eventually runs its seal dry.

What our source says, and where it disagrees

The listing carries the Sta-Rite brand and two part numbers, U9-375 and O-12, while the description also refers to the ring as generic. We have kept both readings rather than choose one. It appears on the Sta-Rite Max-E-Glas II and Dura-Glas II, Dyna-Glas and Dyna-Max, and Pentair Dyna-Wave pump parts diagrams.

Fitting

Wipe the groove and the lid face clean, seat the ring without twisting it, and use a silicone based o-ring lubricant. That lubricant is not optional on a lid that gets opened for basket cleaning, since a dry ring bonds to the lid and tears the next time the pot is opened.

Specifications
Brand Sta-Rite
Manufacturer part number U9-375, O-12
UPC 788379850982
Part type Pool Pump Part
Type Trap cover o-ring
Inside diameter 6-1/4"
Cross section 1/4"
Fits Sta-Rite Dyna-Glas and Dyna-Max pumps, 3/4 through 2 HP models
Shown on diagrams for Sta-Rite Max-E-Glas II and Dura-Glas II pump parts; Sta-Rite Dyna-Glas and Dyna-Max pump parts; Pentair Dyna-Wave pump parts
Source note Listed under the Sta-Rite brand, while the source description also calls the ring generic. Both readings are carried here.
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit$55499 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly$15699 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids)$25399 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws$3699 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro$31399 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media$58699 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S$79199 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black$29599 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit$9799
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in.$15999 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II$30599 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters$38599 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater$125999 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate$7299 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters$11499 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer$4099 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap$3525 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black$126499 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch$16199

Questions and answers

What people ask about this product, answered by our pool techs.

Is this an OEM Sta-Rite ring or a generic?
Our source is not consistent. It is carried under the Sta-Rite brand with the part numbers U9-375 and O-12, and the product description also calls it generic. We have carried both rather than pick one.
Why are there two part numbers?
The ring is listed as U9-375 and as O-12. Either number refers to the same trap cover o-ring, so do not order both looking for two different rings.
What size is it?
6-1/4 inches inside diameter with a 1/4 inch cross section.
My pump keeps losing prime. Is the lid o-ring the cause?
Very often, yes. A flattened, cracked or dried out trap cover o-ring lets air into the suction side, and the pump then loses prime or runs with air in the pot. Clean the groove, fit a fresh ring and lubricate it with a silicone o-ring lubricant.
Ask your own question
