Intermatic T101P201 24 hour 120V mechanical time switch in a Type 3R plastic enclosureIntermatic 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure In stock$18143
Intermatic T101P201 24 hour 120V mechanical time switch in a Type 3R plastic enclosure
Shop all Intermatic

Intermatic 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure

Ask a questionAPS # 49754
$18143
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Heater protection timing It turns a gas fired heater off about 20 minutes before the filter pump shuts down.
  • Stops the pounding Cutting the heater early clears the residual heat instead of trapping it in the exchanger.
  • Less scale Running the pump on after the burner stops reduces scale and lime deposits in the heater.
  • 24 hour dial Up to 12 ON and OFF operations a day, with a one hour minimum between them.
  • SPST at 120V Single pole single throw switching, clock supply 120 VAC at 60 Hz.
  • Type 3R plastic enclosure A rainproof outdoor enclosure for the equipment pad.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure, SKU INT-30-712. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure
Intermatic

24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure

$18143
Intermatic 3" Standoff Spacer, 4 Pack
Intermatic

3" Standoff Spacer, 4 Pack

$1999
Intermatic On/Off Trippers Set
Intermatic

On/Off Trippers Set

$1199
Intermatic 125 Volt, 60 Hz Replacement Time Clock Motor
Intermatic

125 Volt, 60 Hz Replacement Time Clock Motor

$4248
Subtotal

Similar products

Other products people compare with this one.

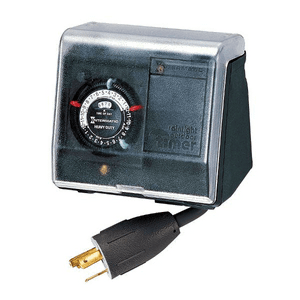

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only$9599 WPCTC replacement time clock for the WPC-2 wireless pool control S.R. Smith WPC-2 Replacement Time Clock for Pool Cleaner Booster$12399 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V$17705 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug$11499 Intermatic T101P3 24-hour 120V mechanical time switch, SPST, with Type 3R plastic enclosure Intermatic T101P3 24-Hour 120V Mechanical Time Switch, SPST, Type 3R Plastic Enclosure$9544 Intermatic T21004R 60 amp load center with T104M time clock mechanism Intermatic T21004R 60 Amp Load Center with T104M Mechanism, 4 Breaker Spaces$25199 Intermatic T103M 110V time clock mechanism only Intermatic Time Clock Mechanism Only, 110V$9099 Intermatic T106M 208/277 volt SPDT time clock mechanism Intermatic T106M 208/277 Volt, SPDT Time Clock Mechanism$10499 Intermatic PF1102M 240V freeze protection thermostat mechanism Intermatic Freeze Protection Thermostat Only for 240V Applications, Mechanism$17999 Intermatic Single Circuit Freeze Protection Control 240V | PF1102 Intermatic Single Circuit Freeze Protection Control 240V | PF1102$23099
Intermatic Complete Timer W Metal Case 120V | T101R3 Intermatic Complete Timer W Metal Case 120V | T101R3$13099 Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism$27499 Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only$27799 Intermatic MECHANISM ONLY 120V | T101M Intermatic MECHANISM ONLY 120V | T101M$8699 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat$7299 Intermatic DUAL BOX W/DUAL T104M 208-277V TIMERS | T10404R Intermatic DUAL BOX W/DUAL T104M 208-277V TIMERS | T10404R$32899 Intermatic P1101 outdoor mechanical plug-in timer with built-in enclosure Intermatic Outdoor Mechanical Plug-In Timer with Built-In Enclosure$6399 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V$6099 Intermatic PB913N66 24 hour panel mount time clock timer mechanism, 120V Intermatic Time Clock Timer Mechanism PF and RC Series Panel Mount 24hr 120V$5799 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer$5599

Product details

The Intermatic T101P201 is a 24 hour mechanical time switch in a Type 3R plastic enclosure, wired for pool heater protection. The clock runs on 120 volts at 60 Hz and the switch is SPST.

What heater protection means

A gas fired heater keeps heat in the exchanger after the burner stops. If the filter pump shuts down at the same moment, that heat has nowhere to go. The result is the pounding and knocking owners hear at the pad, plus accelerated scale and lime deposits inside the heater. This time switch is built to turn the heater off approximately 20 minutes ahead of the pump, so the pump goes on moving water and carries the residual heat away. It is a small piece of sequencing that adds years to a heater.

Duty and ratings

These are heavy duty mechanical time switches with high motor load ratings, used on commercial, industrial and residential jobs. The dial supports up to 12 ON and OFF operations a day with a minimum of one hour between them. Beyond swimming pool and spa filter pumps with gas fired heaters, Intermatic lists the family for booster pumps, lighting, hydro chlorinators, fans, air conditioning, heat pumps and music and signal systems.

Mounting

The Type 3R plastic enclosure is rated for outdoor use, so it can go on the equipment pad. Plastic also avoids the corrosion that eats metal enclosures near salt systems and chemical storage.

Specifications
Brand Intermatic
Manufacturer part number T101P201
UPC 078275700574
Type 24-hour mechanical time switch
Function Heater Protection
Switch SPST
Clock supply 120 VAC 60 Hz
Enclosure Type 3R plastic
Operations Up to 12 ON/OFF operations each day, minimum ON/OFF time of 1 hour
Heater delay Turns the heater off approximately 20 minutes before the filter pump
Shipping weight 3.42 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only$9599 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V$6099 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer$5599 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces$28572 Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism$27499 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box$6701

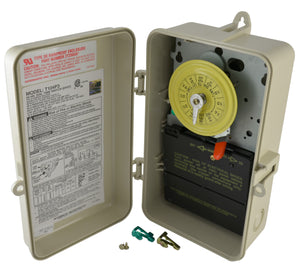

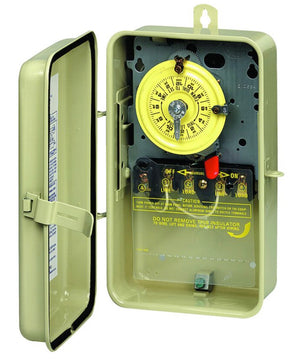

Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only$27799 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure$12699 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug$11499 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer$34199 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure$13199 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor$5199 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces$37499

Questions and answers

What people ask about this product, answered by our pool techs.

What makes this different from a standard pool timer?
The heater protection function. It is set to turn a gas fired heater off roughly 20 minutes before the filter pump stops, so the pump keeps carrying heat away after the burner shuts down.
Why does that matter?
Heat left in the exchanger with no flow causes pounding and knocking, drives scale and lime deposits, and shortens the life of the heater. Running the pump on afterwards clears it.
What voltage and switch type is it?
The clock runs on 120 VAC at 60 Hz and the switch is SPST.
Can it be mounted outside?
Yes. It comes in a Type 3R plastic enclosure, which is the rainproof outdoor rating.
