Sta-Rite O-Ring for System 3 Cartridge Filters In stock$1399

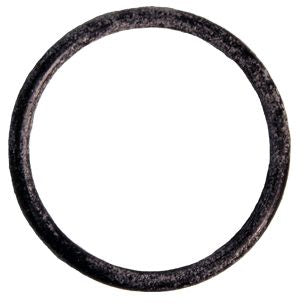

Sta-Rite O-Ring for System 3 Cartridge Filters
30 day returns · Easy, with prepaid labels provided
Quick overview
- Sta-Rite part 35505-1429 The O-ring listed for the System 3 SM cartridge filters.
- 1-5/8 inch inside diameter Sized so you can check it against the seal you are replacing before ordering.
- 1/8 inch cross section Standard cross section, the dimension that decides how the ring seats in its groove.
- Fits four System 3 models Listed for the S7M120, S7M400, S8M150 and S8M500.
- Cheap insurance O-rings are the first thing to renew whenever a filter is opened, long before they visibly fail.
- Lubricate on assembly A silicone based O-ring lubricant helps the ring seat and keeps it from being pinched.
Need a hand?
Similar products
Other products people compare with this one.
Sta-Rite O-Ring, 2-3/8" ID, Adapter to Tank, PLM/PLD$1699
Sta-Rite O-Ring 2-1/8" ID$1699
Sta-Rite Union O-Ring, 1-1/2 inch and 2 inch$999
Sta-Rite Posi-Flo Tank O-Ring, Gray$1399
Sta-Rite Clamp Knob$1799
Sta-Rite Drain Plug Assembly 1-1/2"$1599
Sta-Rite Black Tank O-Ring for Posi-Flo II PTM Cartridge Filters, WC9-3$4099
Sta-Rite Baffle and Bulkhead Fitting for System 3 Cartridge Filters$7999
Sta-Rite Adapter Bushing for System 3 Filters$2899
Sta-Rite Valve and Gauge Assembly for System 3 Filters$11499
Sta-Rite Clamp Assembly For System 3 Filters$14299
Sta-Rite 25" Upper Half Tank Kit for System 3 Filters$129199
Sta-Rite System 3 Cartridge Filter Air Bleed Tube$2499
Sta-Rite O-Ring 3-3/4" ID, for Bulkhead Assembly$2899
Sta-Rite Drain Plug for System 3 Models$4099
Sta-Rite O-Ring for Tank Before 2/97$6299
Sta-Rite Tank Upper Half with Air Relief Valve for System 2 PLM300$48499
Sta-Rite Air Bleed Assembly for PLM Models$2899
Sta-Rite Air Relief Valve Assembly for PLD and PTM Filter Systems$4699
Sta-Rite 25 in. Filter Tank O-Ring, S8D110$7999
Product details
The Sta-Rite 35505-1429 is an O-ring listed for the System 3 SM cartridge filters, measuring 1-5/8 inches inside diameter with a 1/8 inch cross section.
Fitment
It is listed for the System 3 SM models S7M120, S7M400, S8M150 and S8M500. Because the two dimensions are published, you can measure the ring you are replacing and confirm the match before ordering rather than guessing from a picture.
When to change it
O-rings do not usually fail suddenly. They harden with heat and chemical exposure, take a permanent set in the shape of the groove, and then one day the joint weeps. Renewing them whenever the filter is open costs very little compared with chasing a leak later in the season.
Assembly
Clean the groove, wipe the ring, and use a silicone based O-ring lubricant. Lubricant is not there to help it seal; it is there to let the ring slide into place without being pinched or twisted as the parts come together.
| Brand | Sta-Rite |
|---|---|
| Manufacturer part number | 35505-1429 |
| UPC | 788379830373 |
| Part type | Pool Filter Part |
| Type | O-Ring |
| Inside diameter | 1-5/8 inches |
| Cross section | 1/8 inch |
| Fits | Sta-Rite System 3 SM cartridge filters, models S7M120, S7M400, S8M150 and S8M500 |
| Shipping weight | 0.01 lb |
| Ships | Parcel |
