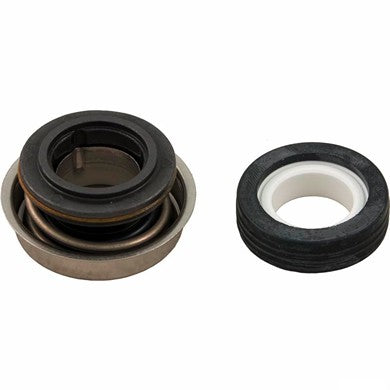

U.S. Seal PS1000 mechanical shaft seal assembly for pool pumpsU.S. Seal PS1000 Shaft Seal Assembly In stock$699
U.S. Seal PS1000 mechanical shaft seal assembly for pool pumps
Shop all US Seal

U.S. Seal PS1000 Shaft Seal Assembly

Ask a questionAPS # 106414
$699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Stops the seal plate leak Water dripping between the motor and the seal plate is the sign this seal has failed.
  • Two piece design A ceramic seat with a rubber back, and a carbon face with spring and stainless steel cup.
  • Fits many pumps Used on Pentair, Hayward, Polaris, Jandy, Waterway and Astral pumps, including the WhisperFlo, Ultra-Flo, PB4-60 booster and Waterway Executive.
  • Cross references Replaces AS1000, VG1000, P55, S1000, PSEAL5 and a long list of other OEM numbers.
  • Replace it every teardown Fit a new seal any time the pump wet end comes apart.
  • Install with a 1 in. coupling Press the cup side into the housing with a 1 in. coupling so the carbon face is never touched.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About U.S. Seal PS1000 Shaft Seal Assembly, SKU USS-60-5023. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item U.S. Seal PS1000 Shaft Seal Assembly
US Seal

U.S. Seal PS1000 Shaft Seal Assembly

$699
U.S. Seal PS200 Mechanical Seal Assembly
US Seal

U.S. Seal PS200 Mechanical Seal Assembly

$1299
U.S. Seal Pump Shaft Seal Assembly PS201
US Seal

U.S. Seal Pump Shaft Seal Assembly PS201

$699
U.S. Seal Heavy Duty Mechanical Seal Assembly (PS200)
US Seal

U.S. Seal Heavy Duty Mechanical Seal Assembly (PS200)

$1599
U.S. Seal Heavy Duty Seal Assembly
US Seal

U.S. Seal Heavy Duty Seal Assembly

$1999
U.S. Seal PS-851 Seal Assembly
US Seal

U.S. Seal PS-851 Seal Assembly

$1199
U.S. Seal Mechanical Seal, 13/16" ID (Generic)
US Seal

U.S. Seal Mechanical Seal, 13/16" ID (Generic)

$2599
Subtotal

Similar products

Other products people compare with this one.

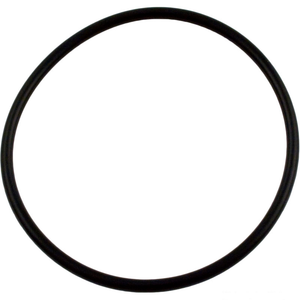

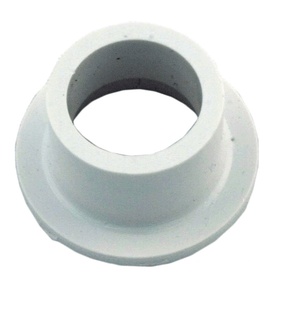

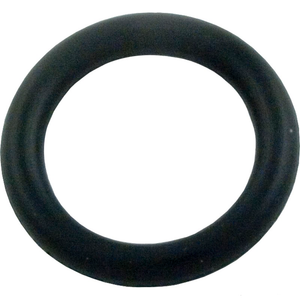

U.S. Seal PS100 replacement pump shaft seal assembly U.S. Seal PS100 Replacement Pump Seal Assembly$699 Pentair 357102 molded seal plate gasket in almond for WhisperFlo pumps Pentair Molded Seal Plate Gasket for WhisperFlo$699 Waterway 313-1400 pump motor shaft slinger Waterway Pump Shaft Slinger 313-1400$499 Polaris P40 genuine OEM shaft o-ring for the PB4-60 booster pump Polaris Genuine OEM O-Ring for Shaft, PB4-60 Booster Pump$399 Waterway 400-4060 1-1/2 inch PVC pump half union assembly Waterway Pump Union Assembly 1-1/2"$899 Aladdin 152 stainless steel 1/4-20 pump shaft set screw Aladdin Stainless Steel Pump Shaft Set Screw, 1/4-20$499 Waterway Waterways 1" Union Assembly Slip Tiny Might | 400-1990 Waterway Waterways 1" Union Assembly Slip Tiny Might | 400-1990$799 Pentair Intelliflo-Whisperflo Seal Plate Bolt | Two Required | 70431 Pentair Intelliflo-Whisperflo Seal Plate Bolt | Two Required | 070431$999 Pentair 350013Z pump lid o-ring, 5-3/4 in. inside diameter Pentair Lid O-Ring, 5-3/4" ID$599 Pentair 071652Z impeller set screw, 1/4-20 x 1 in. left hand thread Pentair Screw 1/4-20 x 1 Left Hand Thread$899

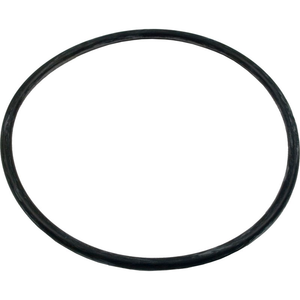

Pentair 075713 rubber impeller washer gasket for WhisperFlo and IntelliFlo pumps Pentair Rubber Impeller Washer Gasket$599 Pentair 355389 left hand thread impeller locking screw Pentair Impeller Locking Screw$999 Pentair 350336Z diffuser o-ring for WhisperFlo XF and IntelliFlo XF pumps Pentair WhisperFlo XF / IntelliFlo XF Diffuser O-Ring #2-336$799 Pentair 39300600 locking lid o-ring for the Ultra Flo pump Pentair Locking Lid O-Ring for Ultra Flo Pump$499 Pentair 071660Z set screw, 4-40 by 1-1/8 inch, for WhisperFlo and IntelliFlo pumps Pentair Set Screw 4-40 1-1/8" (Each)$899 Sta-Rite U178-920P 1/4 inch drain plug with o-ring Sta-Rite Drain Plug with O-Ring, 1/4 in. NPT$899 Sta-Rite 17351-0009 new style water slinger for pool pump motor shafts Sta-Rite Water Slinger For Dyna-Jet/Glas/Max/Pro$899 Pentair 355227Z WhisperFlo WFE diffuser o-ring Pentair WhisperFlo WFE Diffuser O-Ring$699 Polaris O-299-9 bracket O-ring for the PB4-60 booster pump, also listed as P-95 Polaris Bracket O-Ring for PB4-60 Booster Pump$399 Pentair LA415 rubber volute O-ring for the Letro booster pump Pentair Volute O-Ring for Letro Booster Pump$899

Product details

The U.S. Seal PS1000 is the mechanical shaft seal that keeps water in the wet end of a pool pump and out of the motor. It fits pumps from Polaris, Pentair, Hayward, Astral, Jandy and Waterway, and it replaces a long list of OEM seal numbers including AS1000, VG1000, P55 and S1000.

When you need one

The symptom is water leaking between the motor and the seal plate. Ignored, that water tracks down the shaft into the motor bearings and ruins the motor; a motor that has started screaming has usually already been flooded and needs replacing too. Beyond that, fit a new seal any time the pump is dismantled, since a used seal rarely goes back together dry.

Two pieces

One half is a ceramic seat in a rubber back that presses into the seal plate. The other is a carbon face with a spring and stainless steel cup that rides on the impeller side. The two polished faces running against each other are the seal.

Installing it

Never touch the black carbon face. The easiest way to seat the cup half is a 1 in. coupling, which presses on the cup and lets the seal go into the housing square without contacting the face.

Specifications
Brand U.S. Seal
Manufacturer part number PS1000
UPC 852661157032
Type Mechanical shaft seal
Construction Ceramic seat with rubber back, carbon face with spring and cup
Pump brands Polaris, Pentair, Hayward, Astral, Jandy, Waterway
Fits Pentair WhisperFlo WF and WFE, American Products Ultra-Flo, Pentair Letro LA01N booster, Polaris PB4-60 booster, Waterway Center Discharge, Hi-Flo, Champion 56, SVL56, Spa Flo, Iron Might, Workman, Executive 48 and 56 frame, Supreme, Aqua-Flo A Series and Dominator high head, Astral Astra Max
Substitute part numbers P55, S1000, 1128106, AP304D, 001438L, 01512-101, 71734, AQF-101-7737, 04380, 31813, PSEAL5, 603240, 300009, AS1000, 3061002, STA-101-5156, LA1000, U109136SS, P28323, VG1000, PUR-101-6168, 319-3100b
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from US Seal

U.S. Seal PS200 mechanical shaft seal assembly for pool pumps U.S. Seal PS200 Mechanical Seal Assembly$1299 U.S. Seal PS201 pump shaft seal assembly with ceramic seat U.S. Seal Pump Shaft Seal Assembly PS201$699 U.S. Seal PS-3867 heavy duty mechanical shaft seal assembly U.S. Seal Heavy Duty Mechanical Seal Assembly (PS200)$1599 U.S. Seal PS-3868 heavy duty mechanical pump seal set U.S. Seal Heavy Duty Seal Assembly$1999 U.S. Seal PS-851 pump shaft seal assembly U.S. Seal PS-851 Seal Assembly$1199 U.S. Seal PS-4231 generic mechanical shaft seal with a 13/16 inch ceramic inside diameter U.S. Seal Mechanical Seal, 13/16" ID (Generic)$2599 U.S. Seal PS-3890 generic shaft seal assembly for Hayward Northstar pumps U.S. Seal Shaft Seal Assembly (Generic)$2299 U.S. Seal PS-3865R heavy duty 5/8 inch Viton carbon pump shaft seal U.S. Seal Heavy Duty Salt and Ozone Service Shaft Seal, Viton Carbon$1599 Generic 5/8 inch inside diameter carbon and ceramic mechanical shaft seal for Jandy pumps U.S. Seal Mechanical Seal, 5/8" ID (Generic)$1999 VAL-051-1003 Val-Pak Brass Sleeve Nut 5/16"-24 | V60-110 DEX2400JN$2299

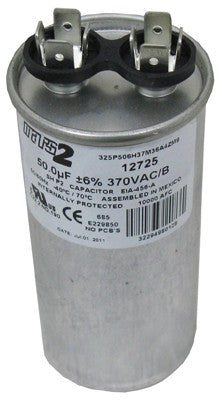

U.S. Seal RD-50-370 run capacitor, 50 MFD 370 volts U.S. Seal Run Capacitor 50 MFD 370V$4299 U.S. Seal 30 MFD 370 VAC run capacitor for pool pump motors U.S. Seal Run Capacitor, 30 MFD, 370vac$3099 U.S. Seal PS-601 shaft seal assembly for a 3/4 inch pump shaft U.S. Seal Shaft Seal Assembly, 3/4" Shaft$1999 U.S. Seal RD-25-370 round run capacitor, 25 MFD 370V U.S. Seal Run Capacitor 25 MFD 370V Round$2799 U.S. Seal PS-3986 extra heavy duty shaft seal assembly for 3/4 inch shafts U.S. Seal Shaft Seal Assembly, 3/4" Shaft, Extra Heavy Duty, Saltwater/Ozone Pools$2799 U.S. Seal RBL-6203-LL double sealed 6203 pool pump motor bearing U.S. Seal 6203 Motor Bearing$1299 U.S. Seal PS100 replacement pump shaft seal assembly U.S. Seal PS100 Replacement Pump Seal Assembly$699 U.S. Seal PS-2131 pump shaft seal assembly U.S. Seal Shaft Seal Assembly PS2131$1599 US Seal CAPACITOR 35MFD 370V ROUND | RD-35-370 US Seal CAPACITOR 35MFD 370V ROUND | RD-35-370$3599 US Seal ASSEMBLY 3/4" CUP MTD | PS-201V-CMS US Seal ASSEMBLY 3/4" CUP MTD | PS-201V-CMS$2899

Questions and answers

What people ask about this product, answered by our pool techs.

How do I know this seal has failed?
Water leaking between the motor and the seal plate. Left too long, water runs down the shaft into the motor. If the motor is already making a loud screaming noise, that has probably happened and the motor should be replaced along with the seal.
Will it fit my pump?
It is used across Polaris, Pentair, Hayward, Astral, Jandy and Waterway pumps, including the Pentair WhisperFlo, Ultra-Flo, Polaris PB4-60 booster, the Waterway Executive, Hi-Flo, Champion and Supreme, and the Aqua-Flo Dominator. If your old seal carries AS1000, VG1000, P55, S1000 or another number in the cross reference list, this is the match.
How do I install it without damaging it?
Do not touch the black carbon face. Press the stainless cup side into the pump housing with a 1 in. coupling, which bears on the cup rather than the face.
Should I replace it if it is not leaking yet?
Yes, whenever the pump is dismantled. A used seal rarely reseats, and the part costs far less than the motor it protects.
Ask your own question
